ADVANCED LOGIC RESEARCH, INC.
FLYER 32LCT
Processor | 80486SX/80486DX/80486DX2 |
Processor Speed | 25/33/50MHz |
Chip Set | C & T |
Max. Onboard DRAM | 64MB |
Cache | 256KB |
BIOS | Phoenix |
Dimensions | 335mm x 311mm |
I/O Options | Floppy drive interface, IDE interface,parallel port, PS/2 mouse port, proprietary CPU module slot, proprietary cache module slot,serial ports (2), VGA port |
NPU Options | None |

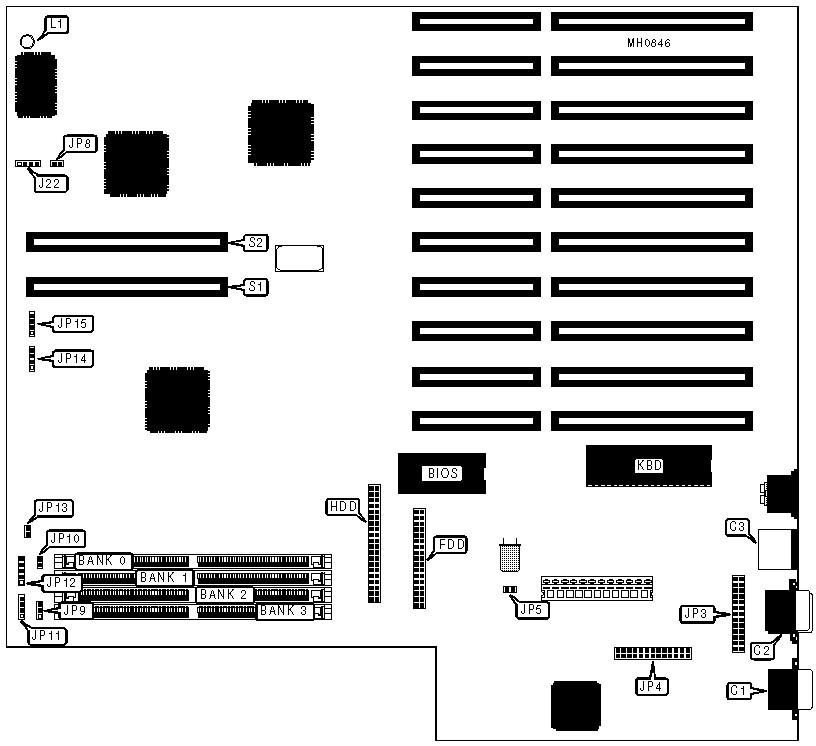

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
VGA port | C1 | Turbo LED | JP10 |
Serial ports (COM1&COM2) | C2 | IDE interface LED | JP11 |
PS/2 bus mouse | C3 | Power LED & keylock | JP12 |
Floppy drive interface | FDD | Reset switch | JP13 |
IDE interface | HDD | Cooling fan connector | JP14 |
External battery | J22 | Speaker | JP15 |
Parallel port | JP3 | On-board power LED | L1 |
VGA pass-through header | JP4 | Proprietary CPU module | S1 |
Turbo switch | JP9 | Proprietary cache module | S2 |
USER CONFIGURABLE SETTINGS | |||
Function | Jumper | Position | |
» | VGA port enabled | JP5 | Closed |
VGA port disabled | JP5 | Open | |
» | CMOS memory normal operation | JP8 | Open |
CMOS memory clear | JP8 | Closed |
DRAM CONFIGURATION | ||||
Size | Bank 0 | Bank 1 | Bank 2 | Bank 3 |
1MB | (1) 256K x 36 | NONE | NONE | NONE |
2MB | (1) 256K x 36 | (1) 256K x 36 | NONE | NONE |
3MB | (1) 256K x 36 | (1) 256K x 36 | (1) 256K x 36 | NONE |
4MB | (1) 256K x 36 | (1) 256K x 36 | (1) 256K x 36 | (1) 256K x 36 |
4MB | (1) 1M x 36 | NONE | NONE | NONE |
5MB | (1) 256K x 36 | (1) 1M x 36 | NONE | NONE |
6MB | (1) 256K x 36 | (1) 256K x 36 | (1) 1M x 36 | NONE |
8MB | (1) 1M x 36 | (1) 1M x 36 | NONE | NONE |
9MB | (1) 256K x 36 | (1) 1M x 36 | (1) 1M x 36 | NONE |
10MB | (1) 256K x 36 | (1) 256K x 36 | (1) 1M x 36 | (1) 1M x 36 |
12MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x 36 | NONE |
16MB | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x 36 | (1) 1M x 36 |
16MB | (1) 4M x 36 | NONE | NONE | NONE |
20MB | (1) 1M x 36 | (1) 4M x 36 | NONE | NONE |
24MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x 36 | NONE |
32MB | (1) 4M x 36 | (1) 4M x 36 | NONE | NONE |
36MB | (1) 1M x 36 | (1) 4M x 36 | (1) 4M x 36 | NONE |
40MB | (1) 1M x 36 | (1) 1M x 36 | (1) 4M x 36 | (1) 4M x 36 |
48MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x 36 | NONE |
64MB | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x 36 | (1) 4M x 36 |
CACHE CONFIGURATION | |
Size | Location |
256KB | Proprietary cache module (S2) |
