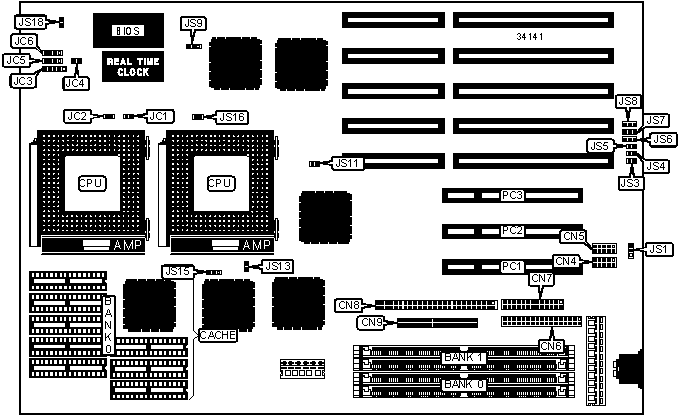

54CDP (REV. 1.0) Motherboard Settings and Configuration

ADVANCED INTEGRATION RESEARCH, INC.

54CDP (REV. 1.0)

Processor
Pentium
Processor Speed
90/100MHz
Chip Set
Intel
Video Chip Set
None
Maximum Onboard Memory
512MB
Maximum Video Memory
None
Cache
256/512KB
BIOS
AMI
Dimensions
332mm x 221mm
I/O Options
32-bit PCI slots (3), floppy drive interface, SCSI-2 interface, Wide SCSI-2 interface, parallel port, serial ports (2)
NPU Options
None

CONNECTIONS
Purpose
Location
Purpose
Location
Serial port 1
CN4
Turbo LED
JC2
Serial port 2
CN5
Power LED & keylock
JC3
Floppy drive interface
CN6
Turbo switch
JC4
Parallel port
CN7
SCSI interface LED
JC5
SCSI-2 interface
CN8
Speaker
JC6
Wide SCSI-2 interface
CN9
32-bit PCI slots
PC1 - PC3
Reset switch
JC1

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
CMOS memory normal operation
JS3
Open

CMOS memory clear
JS3
Closed
»
Parallel port IRQ select IRQ7
JS6
Pins 2 & 3 closed

Parallel port IRQ select IRQ5
JS6
Pins 1 & 2 closed
»
Flash BIOS normal operation
JS9
Pins 2 & 3 closed

Flash BIOS programming mode
JS9
Pins 1 & 2 closed
»
Monitor type select VGA/EGA/monochrome
JS16
Closed

Monitor type select CGA
JS16
Open

DRAM CONFIGURATION
Size
Bank 0
Bank 1
2MB
(2) 256K x 36
None
4MB
(2) 256K x 36
(2) 256K x 36
4MB
(2) 512K x 36
None
6MB
(2) 256K x 36
(2) 512K x 36
8MB
(2) 512K x 36
(2) 512K x 36
8MB
(2) 1M x 36
None
10MB
(2) 256K x 36
(2) 1M x 36
12MB
(2) 512K x 36
(2) 1M x 36
16MB
(2) 1M x 36
(2) 1M x 36
16MB
(2) 2M x 36
None
18MB
(2) 256K x 36
(2) 2M x 36
20MB
(2) 512K x 36
(2) 2M x 36
24MB
(2) 1M x 36
(2) 2M x 36
32MB
(2) 2M x 36
(2) 2M x 36
32MB
(2) 4M x 36
None
34MB
(2) 256K x 36
(2) 4M x 36
36MB
(2) 512K x 36
(2) 4M x 36
40MB
(2) 1M x 36
(2) 4M x 36
48MB
(2) 2M x 36
(2) 4M x 36

DRAM CONFIGURATION (CON'T)
Size
Bank 0
Bank 1
64MB
(2) 4M x 36
(2) 4M x 36
64MB
(2) 8M x 36
None
66MB
(2) 256K x 36
(2) 8M x 36
68MB
(2) 512K x 36
(2) 8M x 36
72MB
(2) 1M x 36
(2) 8M x 36
80MB
(2) 2M x 36
(2) 8M x 36
96MB
(2) 4M x 36
(2) 8M x 36
128MB
(2) 8M x 36
(2) 8M x 36
128MB
(2) 16M x 36
None
144MB
(2) 16M x 36
(2) 1M x 36
192MB
(2) 16M x 36
(2) 8M x 36
256MB
(2) 16M x 36
(2) 16M x 36
256MB
(2) 32M x 36
None
512MB
(2) 32M x 36
(2) 32M x 36

CACHE CONFIGURATION
Size
Bank 0
256KB
(8) 32K x 8
512KB
(8) 64K x 8

CACHE JUMPER CONFIGURATION
Size
JS15
256KB
Pins 1 & 2 closed
512KB
Pins 2 & 3 closed

CPU SPEED SELECTION
Speed
JS18
90MHz
Open
100MHz
Closed

CPU TYPE SELECTION
Type
JS13
»
Single CPU installed
Closed

Dual CPUs installed
Open

DMA CHANNEL SELECTION
Channel
JS5
JS7
JS8
»
Normal
Open
Open
Open

1
Closed
Pins 1 & 2 closed
Pins 1 & 2 closed

3
Closed
Pins 2 & 3 closed
Pins 2 & 3 closed

FLOPPY DRIVE SELECTION
Setting
JS1
JS4
»
Normal
Open
Open

Enhanced
Pins 2 & 3 closed
Closed

SCSI SELECTION
Setting
JS11
»
8-bit Fast SCSI & 16-bit Fast Wide SCSI
Closed

8-bit Fast SCSI only
Open

16-bit Fast Wide SCSI only
Closed
