54CDP (REV. 1.10) Motherboard Settings and Configuration

ADVANCED INTEGRATION RESEARCH, INC.

54CDP (REV. 1.10)

Processor
Pentium
Processor Speed
90/100MHz
Chip Set
Intel
Video Chip Set
None
Maximum Onboard Memory
512MB
Maximum Video Memory
None
Cache
256/512KB
BIOS
AMI
Dimensions
332mm x 221mm
I/O Options
32-bit PCI slots (3), floppy drive interface, SCSI interfaces (2), parallel port, serial ports (2)
NPU Options
None

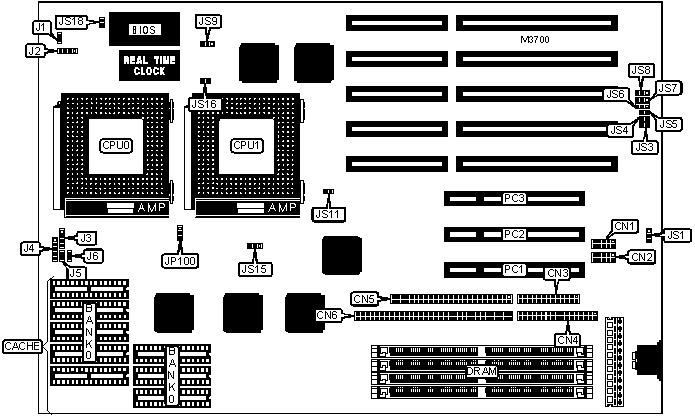

CONNECTIONS
Purpose
Location
Purpose
Location
Serial port
CN1
Speaker
J2
Serial port
CN2
SCSI interface LED
J3
Parallel port
CN3
Power LED & keylock
J4
Floppy drive interface
CN4
Turbo switch
J5
SCSI-2 interface
CN5
Turbo LED
J6
Wide SCSI-2 interface
CN6
32-bit PCI slots
PC1 - PC3
Reset switch
J1

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
CMOS memory normal operation
JS3
Open

CMOS memory clear
JS3
Closed
»
Parallel port IRQ select IRQ7
JS6
Pins 2 & 3 closed

Parallel port IRQ select IRQ5
JS6
Pins 1 & 2 closed
»
Flash BIOS normal operation
JS9
Pins 2 & 3 closed

Flash BIOS programming mode
JS9
Pins 1 & 2 closed
»
Monitor type select monochrome/EGA/VGA
JS16
Closed

Monitor type select CGA
JS16
Open

DRAM CONFIGURATION
Size
Bank 0
Bank 1
2MB
(2) 256K x 36
None
4MB
(2) 256K x 36
(2) 256K x 36
4MB
(2) 512K x 36
None
6MB
(2) 256K x 36
(2) 512K x 36
8MB
(2) 512K x 36
(2) 512K x 36
8MB
(2) 1M x 36
None
10MB
(2) 256K x 36
(2) 1M x 36
12MB
(2) 512K x 36
(2) 1M x 36
16MB
(2) 1M x 36
(2) 1M x 36
16MB
(2) 2M x 36
None
18MB
(2) 256K x 36
(2) 2M x 36
20MB
(2) 512K x 36
(2) 2M x 36
24MB
(2) 1M x 36
(2) 2M x 36
32MB
(2) 2M x 36
(2) 2M x 36
32MB
(2) 4M x 36
None
34MB
(2) 256K x 36
(2) 4M x 36
36MB
(2) 512K x 36
(2) 4M x 36
40MB
(2) 1M x 36
(2) 4M x 36
48MB
(2) 2M x 36
(2) 4M x 36
64MB
(2) 4M x 36
(2) 4M x 36
64MB
(2) 8M x 36
None
64MB
(2) 8M x 36
None
66MB
(2) 256K x 36
(2) 8M x 36
68MB
(2) 512K x 36
(2) 8M x 36
72MB
(2) 1M x 36
(2) 8M x 36
80MB
(2) 2M x 36
(2) 8M x 36
96MB
(2) 4M x 36
(2) 8M x 36
128MB
(2) 8M x 36
(2) 8M x 36
128MB
(2) 16M x 36
None

DRAM CONFIGURATION (CON'T)
Size
Bank 0
Bank 1
160MB
(2) 16M x 36
(2) 4M x 36
192MB
(2) 16M x 36
(2) 8M x 36
256MB
(2) 16M x 36
(2) 16M x 36
256MB
(2) 32M x 36
None
512MB
(2) 32M x 36
(2) 32M x 36
Note: The location of banks 0 & 1 are unidentified.

CACHE CONFIGURATION
Size
Bank 0
256KB
(8) 32K x 8
512KB
(8) 64K x 8

CACHE JUMPER CONFIGURATION
Size
JS15
256KB
Pins 1 & 2 closed
512KB
Pins 2 & 3 closed

CPU SPEED SELECTION
CPU speed
Clock speed
Multiplier
JS18
90MHz
60MHz
1.5x
Open
100MHz
66MHz
1.5x
Closed

CPU TYPE SELECTION
Type
JP100
»
VR (3.37v)
Pins 2 & 3 closed

VRE (3.53v)
Pins 1 & 2 closed

DMA CHANNEL SELECTION
Channel
JS5
JS7
JS8
»
Normal mode
Open
Open
Open

1
Closed
Pins 1 & 2 closed
Pins 1 & 2 closed

3
Closed
Pins 2 & 3 closed
Pins 2 & 3 closed

FLOPPY DRIVE SELECTION
Setting
JS1
JS4
»
Normal
Open
Open

Enhanced
Closed
Pins 2 & 3 closed

SCSI SELECTION
Setting
JS11
»
8-bit Fast
Open

8-bit/16-bit Fast-Wide
Closed

16-bit Fast Wide
Closed
