MS-5170 Motherboard Settings and Configuration

ACHME COMPUTER, INC.

MS-5170

Device Type
Mainboard
Processor
CX 6X86/CX 6X86L/CX 686MX/AM K5/AM K6/Pentium
Processor Speed
Unidentified
Chip Set
Intel
Video Chip Set
None
Maximum Onboard Memory
256MB (EDO & SDRAM supported)
Maximum Video Memory
None
Cache
512KB
BIOS
Unidentified
Dimensions
220mm x 220mm
I/O Options
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse interface, serial ports (2), IR connector, USB connector, ATX power connector
NPU Options
None

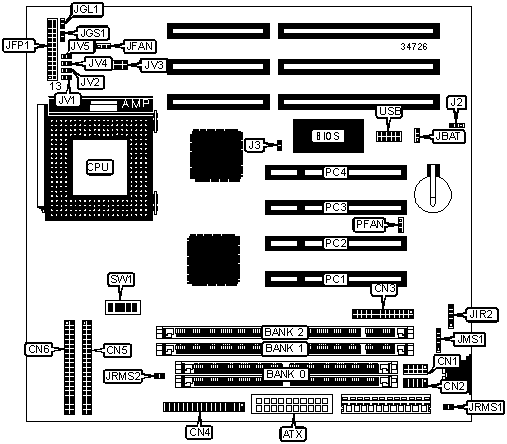

CONNECTIONS
Purpose
Location
Purpose
Location
ATX power connector
ATX
Speaker
JFP1/pins 19 - 22
Serial port 2
CN1
IDE interface LED
JFP1/pins 12 & 24
Serial port 1
CN2
IR connector
JIR2
Parallel port
CN3
Green PC connector
JGS1
Floppy drive interface
CN4
Green PC LED
JGL1
IDE interface 2
CN5
PS/2 mouse interface
JMS1
IDE interface 1
CN6
Soft off power supply
JRMS1
Chassis fan power
JFAN
Soft off power supply
JRMS2
Turbo LED
JFP1/pins 2 & 3
32-bit PCI slots
PC1 – PC4
Reset switch
JFP1/pins 9 & 10
Chassis fan power
PFAN
Power LED & keylock
JFP1/pins 13 - 17
USB connector
USB

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Factory configured - do not alter
J3
Unidentified
»
Factory configured - do not alter
JBAT
Unidentified

SIMM CONFIGURATION
Size
Bank 0
8MB
(2) 1M x 36
16MB
(2) 2M x 36
32MB
(2) 4M x 36
64MB
(2) 8M x 36
128MB
(2) 16M x 36
Note: Board accepts EDO memory.

DIMM CONFIGURATION
Size
Bank 1
Bank 2
8MB
(1) 1M x 64
None
16MB
(1) 2M x 64
None
16MB
(1) 1M x 64
(1) 1M x 64
24MB
(1) 2M x 64
(1) 1M x 64
32MB
(1) 4M x 64
None
32MB
(1) 2M x 64
(1) 2M x 64
40MB
(1) 4M x 64
(1) 1M x 64
48MB
(1) 4M x 64
(1) 2M x 64
64MB
(1) 8M x 64
None
64MB
(1) 4M x 64
(1) 4M x 64
72MB
(1) 8M x 64
(1) 1M x 64
80MB
(1) 8M x 64
(1) 2M x 64

DIMM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
96MB
(1) 8M x 64
(1) 4M x 64
128MB
(1) 16M x 64
None
128MB
(1) 8M x 64
(1) 8M x 64
136MB
(1) 16M x 64
(1) 1M x 64
144MB
(1) 16M x 64
(1) 2M x 64
160MB
(1) 16M x 64
(1) 4M x 64
192MB
(1) 16M x 64
(1) 8M x 64
256MB
(1) 16M x 64
(1) 16M x 64
Note: Board accepts SDRAM memory.

CACHE CONFIGURATION
Note: 512KB cache is factory installed and is not configurable. The location is unidentified.

CPU BUS SPEED SELECTION
Speed
SW1/4
SW1/5
55MHz
On
On
60MHz
On
Off
66MHz
Off
Off

CPU MULTIPLIER SELECTION
Multiplier
SW1/1
SW1/2
SW1/3
1.5x
Off
Off
Off
2x
On
Off
Off
2.5x
On
On
Off
3x
Off
On
Off

CPU VOLTAGE SELECTION
Voltage
V core
JV1
JV2
JV4
JV5
3.3v
2.0v
Open
Open
Open
Open
3.3v
2.1v
Closed
Open
Open
Open
3.3v
2.5v
Closed
Open
Closed
Open
3.3v
2.8v
Open
Open
Open
Closed
3.3v
2.9v
Closed
Open
Open
Closed
3.3v
3.2v
Open
Open
Closed
Closed
3.3v
3.3v
Closed
Open
Closed
Closed
3.5v
3.5v
Closed
Closed
Closed
Closed

CPU VOLTAGE SELECTION
Setting
JV3
Single
Pins 1 & 2 closed
Dual
Pins 2 & 3 closed

POWER SELECTION
Setting
J2
System always off when AC power is on
Pins 1 & 2 closed
System goes to last status when AC power on for internal test only
Pins 2 & 3 closed
System always on when AC power is on
Open
