MS-5136 (VER 1.0) Motherboard Settings and Configuration

ACHME COMPUTER, INC.

MS-5136 (VER 1.0)

Processor
CX M1/AM K5/Pentium
Processor Speed
75/90/100/120/133/150/166/200MHz
Chip Set
Intel
Video Chip Set
None
Maximum Onboard Memory
128MB (EDO supported)
Maximum Video Memory
None
Cache
256/512KB
BIOS
AMI/Award
Dimensions
305mm x 220mm
I/O Options
32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), cache slot, IR connector, USB connector, ATX power connector, remote power on/off switch, remote on/off switch
NPU Options
None

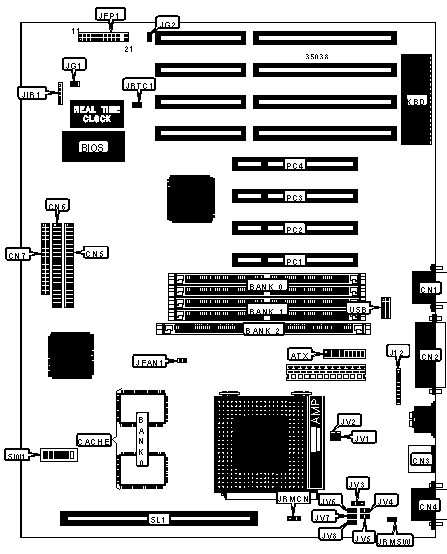

CONNECTIONS
Purpose
Location
Purpose
Location
ATX power connector
ATX
Turbo LED
JFP1 pins 12 & 13
Serial port 2
CN1
Turbo switch
JFP1 pins 15 & 17
Parallel port
CN2
Reset switch
JFP1 pins 19 & 20
PS/2 mouse port
CN3
IDE interface LED
JFP1 pins 21 & 22
Serial port 1
CN4
Green PC connector
JG2
IDE interface 1
CN5
IR connector
JIR1
IDE interface 2
CN6
Remote on/off switch
JRMCN
Floppy drive interface
CN7
Remote on/off switch
JRMSW
Chassis fan power
JFAN1
32-bit PCI slots
PC1 - PC4
Power LED & keylock
JFP1 pins 1 - 5
Cache slot
SL1
Speaker
JFP1 pins 7 & 10
USB connector
USB

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Factory configured - do not alter
J12
1 & 2, 3 & 4, 5 & 6, 7 & 8
»
Factory configured - do not alter
JG1
Unidentified
»
Factory configured - do not alter
JRTC1
Unidentified
Note: Pins designated should be in the closed position.

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
8MB
(2) 1M x 36
None
None
8MB
None
None
(1) 1M x 64
16MB
(2) 2M x 36
None
None
16MB
(2) 1M x 36
(2) 1M x 36
None
16MB
None
None
(1) 2M x 64
24MB
(2) 1M x 36
(2) 2M x 36
None
32MB
(2) 4M x 36
None
None
32MB
(2) 2M x 36
(2) 2M x 36
None
32MB
None
None
(1) 4M x 64
40MB
(2) 4M x 36
(2) 1M x 36
None
48MB
(2) 2M x 36
(2) 4M x 36
None
64MB
(2) 8M x 36
None
None
64MB
(2) 4M x 36
(2) 4M x 36
None
64MB
None
None
(1) 8M x 64
72MB
(2) 1M x 36
(2) 8M x 36
None
80MB
(2) 8M x 36
(2) 2M x 36
None
96MB
(2) 4M x 36
(2) 8M x 36
None
128MB
(2) 8M x 36
(2) 8M x 36
None
Note: Board accepts EDO memory. Banks 0 & 1 are interchangeable.

CACHE CONFIGURATION
Size
Bank 0
SL1
256KB
(2) 32K x 32
Not installed
512KB
(2) 32K x 32
256KB module installed

CPU SPEED SELECTION (CYRIX)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
120MHz
50MHz
2x
Off
Off
On
Off
On
Off
133MHz
55MHz
2x
Off
On
On
On
On
Off
150MHz
60MHz
2x
Off
On
Off
Off
On
Off
166MHz
66MHz
2x
Off
Off
Off
Off
On
Off

CPU SPEED SELECTION (AMD)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
75MHz
50MHz
1.5x
Off
Off
On
Off
Off
Off
90MHz
60MHz
1.5x
Off
On
Off
Off
Off
Off

CPU SPEED SELECTION (INTEL)
CPU speed
Clock speed
Multiplier
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
75MHz
50MHz
1.5x
Off
Off
On
Off
Off
Off
90MHz
60MHz
1.5x
Off
On
Off
Off
Off
Off
100MHz
66MHz
1.5x
Off
Off
Off
Off
Off
Off
120MHz
60MHz
2x
Off
On
Off
Off
On
Off
133MHz
66MHz
2x
Off
Off
Off
Off
On
Off
150MHz
60MHz
2.5x
Off
On
Off
Off
On
On
166MHz
66MHz
2.5x
Off
Off
Off
Off
On
On
200MHz
66MHz
3x
Off
Off
Off
Off
Off
On

CPU VOLTAGE SELECTION
V core
VI/O
JV1
JV2
JV3
JV4
JV5
JV6
JV7
JV8
2.5v
3.3v
Open
Open
2 & 3
Open
Open
Closed
Open
Open
2.8v
3.3v
Open
Open
2 & 3
Open
Open
Open
Closed
Open
2.9v
3.3v
Open
Open
2 & 3
Open
Open
Open
Open
Closed
3.38v
3.38v
Closed
Closed
1 & 2
Closed
Open
Open
Open
Open
3.52v
3.52v
Closed
Closed
1 & 2
Open
Closed
Open
Open
Open

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

MS-5136 (VER 1.0) Motherboard Settings and Configuration

Search

My Books

Discover

Processor	CX M1/AM K5/Pentium
Processor Speed	75/90/100/120/133/150/166/200MHz
Chip Set	Intel
Video Chip Set	None
Maximum Onboard Memory	128MB (EDO supported)
Maximum Video Memory	None
Cache	256/512KB
BIOS	AMI/Award
Dimensions	305mm x 220mm
I/O Options	32-bit PCI slots (4), floppy drive interface, green PC connector, IDE interfaces (2), parallel port, PS/2 mouse port, serial ports (2), cache slot, IR connector, USB connector, ATX power connector, remote power on/off switch, remote on/off switch
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
ATX power connector	ATX	Turbo LED	JFP1 pins 12 & 13
Serial port 2	CN1	Turbo switch	JFP1 pins 15 & 17
Parallel port	CN2	Reset switch	JFP1 pins 19 & 20
PS/2 mouse port	CN3	IDE interface LED	JFP1 pins 21 & 22
Serial port 1	CN4	Green PC connector	JG2
IDE interface 1	CN5	IR connector	JIR1
IDE interface 2	CN6	Remote on/off switch	JRMCN
Floppy drive interface	CN7	Remote on/off switch	JRMSW
Chassis fan power	JFAN1	32-bit PCI slots	PC1 - PC4
Power LED & keylock	JFP1 pins 1 - 5	Cache slot	SL1
Speaker	JFP1 pins 7 & 10	USB connector	USB

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter	J12	1 & 2, 3 & 4, 5 & 6, 7 & 8
»	Factory configured - do not alter	JG1	Unidentified
»	Factory configured - do not alter	JRTC1	Unidentified
Note: Pins designated should be in the closed position.

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2
8MB	(2) 1M x 36	None	None
8MB	None	None	(1) 1M x 64
16MB	(2) 2M x 36	None	None
16MB	(2) 1M x 36	(2) 1M x 36	None
16MB	None	None	(1) 2M x 64
24MB	(2) 1M x 36	(2) 2M x 36	None
32MB	(2) 4M x 36	None	None
32MB	(2) 2M x 36	(2) 2M x 36	None
32MB	None	None	(1) 4M x 64
40MB	(2) 4M x 36	(2) 1M x 36	None
48MB	(2) 2M x 36	(2) 4M x 36	None
64MB	(2) 8M x 36	None	None
64MB	(2) 4M x 36	(2) 4M x 36	None
64MB	None	None	(1) 8M x 64
72MB	(2) 1M x 36	(2) 8M x 36	None
80MB	(2) 8M x 36	(2) 2M x 36	None
96MB	(2) 4M x 36	(2) 8M x 36	None
128MB	(2) 8M x 36	(2) 8M x 36	None
Note: Board accepts EDO memory. Banks 0 & 1 are interchangeable.

CACHE CONFIGURATION
Size	Bank 0	SL1
256KB	(2) 32K x 32	Not installed
512KB	(2) 32K x 32	256KB module installed

CPU SPEED SELECTION (CYRIX)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
120MHz	50MHz	2x	Off	Off	On	Off	On	Off
133MHz	55MHz	2x	Off	On	On	On	On	Off
150MHz	60MHz	2x	Off	On	Off	Off	On	Off
166MHz	66MHz	2x	Off	Off	Off	Off	On	Off

CPU SPEED SELECTION (AMD)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
75MHz	50MHz	1.5x	Off	Off	On	Off	Off	Off
90MHz	60MHz	1.5x	Off	On	Off	Off	Off	Off

CPU SPEED SELECTION (INTEL)
CPU speed	Clock speed	Multiplier	SW1/1	SW1/2	SW1/3	SW1/4	SW1/5	SW1/6
75MHz	50MHz	1.5x	Off	Off	On	Off	Off	Off
90MHz	60MHz	1.5x	Off	On	Off	Off	Off	Off
100MHz	66MHz	1.5x	Off	Off	Off	Off	Off	Off
120MHz	60MHz	2x	Off	On	Off	Off	On	Off
133MHz	66MHz	2x	Off	Off	Off	Off	On	Off
150MHz	60MHz	2.5x	Off	On	Off	Off	On	On
166MHz	66MHz	2.5x	Off	Off	Off	Off	On	On
200MHz	66MHz	3x	Off	Off	Off	Off	Off	On

CPU VOLTAGE SELECTION
V core	VI/O	JV1	JV2	JV3	JV4	JV5	JV6	JV7	JV8
2.5v	3.3v	Open	Open	2 & 3	Open	Open	Closed	Open	Open
2.8v	3.3v	Open	Open	2 & 3	Open	Open	Open	Closed	Open
2.9v	3.3v	Open	Open	2 & 3	Open	Open	Open	Open	Closed
3.38v	3.38v	Closed	Closed	1 & 2	Closed	Open	Open	Open	Open
3.52v	3.52v	Closed	Closed	1 & 2	Open	Closed	Open	Open	Open
