VI15G Motherboard Settings and Configuration

ACER, INC.

VI15G

Processor
80486SX/CX486DX/AMD486DX/80486DX/ODP486SX/CX486DX2/AMD486DXL/AMD486DX2/80486DX2
Processor Speed
25/33/40/50(internal)/50/66(internal)MHz
Chip Set
SIS
Max. Onboard DRAM
128MB
Cache
128/256/512KB
BIOS
AMI
Dimensions
254mm x 220mm
I/O Options
32-bit VESA local bus slots (3), green PC connector
NPU Options
None

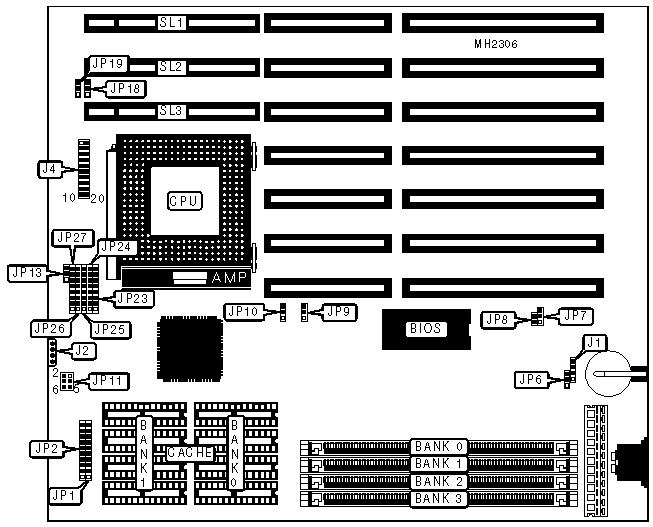

CONNECTIONS
Purpose
Location
Purpose
Location
External battery
J1
Turbo LED (green PC LED)
J4 (pins 12 - 13)
Chassis fan power
J2
Turbo switch (green PC break)
J4 (pins 15 - 16)
Chassis fan power
J3
Reset switch
J4 (pins 19 - 20)
Power LED & keylock
J4 (pins 1 - 5)
32-bit VESA local bus slots
SL1 - SL3
Speaker
J4 (pins 6 - 10)

Note: The location of J3 is unidentified.

USER CONFIGURABLE SETTINGS
Function
Jumper
Position
»
CMOS memory normal operation
JP6
pins 1 & 2 closed

CMOS memory clear
JP6
pins 2 & 3 closed
»
Factory configured - do not alter
JP7
Open
»
Factory configured - do not alter
JP8
Open

DRAM CONFIGURATION
Size
Bank 0
Bank 1
Bank 2
Bank 3
1MB
(1) 256K x 36
NONE
NONE
NONE
2MB
(1) 256K x 36
(1) 256K x 36
NONE
NONE
2MB
(1) 512K x 36
NONE
NONE
NONE
4MB
(1) 256K x 36
(1) 256K x 36
(1) 512K x 36
NONE
4MB
(1) 512K x 36
(1) 512K x 36
NONE
NONE
4MB
(1) 1M x 36
NONE
NONE
NONE
5MB
(1) 256K x 36
(1) 1M x 36
NONE
NONE
6MB
(1) 256K x 36
(1) 256K x 36
(1) 1M x 36
NONE
6MB
(1) 512K x 36
(1) 1M x 36
NONE
NONE
8MB
(1) 256K x 36
(1) 256K x 36
(1) 512K x 36
(1) 1M x 36
8MB
(1) 512K x 36
(1) 512K x 36
(1) 1M x 36
NONE
8MB
(1) 1M x 36
(1) 1M x 36
NONE
NONE
8MB
(1) 2M x 36
NONE
NONE
NONE
10MB
(1) 256K x 36
(1) 256K x 36
(1) 1M x 36
(1) 1M x 36
12MB
(1) 512K x 36
(1) 512K x 36
(1) 1M x 36
(1) 1M x 36
12MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
NONE
16MB
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
(1) 1M x 36
16MB
(1) 2M x 36
(1) 2M x 36
NONE
NONE
16MB
(1) 4M x 36
NONE
NONE
NONE
17MB
(1) 256K x 36
(1) 4M x 36
NONE
NONE
18MB
(1) 256K x 36
(1) 256K x 36
(1) 4M x 36
NONE
18MB
(1) 512K x 36
(1) 4M x 36
NONE
NONE
20MB
(1) 512K x 36
(1) 512K x 36
(1) 4M x 36
NONE
20MB
(1) 1M x 36
(1) 4M x 36
NONE
NONE
24MB
(1) 512K x 36
(1) 512K x 36
(1) 1M x 36
(1) 4M x 36
24MB
(1) 1M x 36
(1) 1M x 36
(1) 4M x 36
NONE
24MB
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
NONE
32MB
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
(1) 2M x 36
32MB
(1) 4M x 36
(1) 4M x 36
NONE
NONE
32MB
(1) 8M x 36
NONE
NONE
NONE
36MB
(1) 512K x 36
(1) 512K x 36
(1) 4M x 36
(1) 4M x 36
36MB
(1) 1M x 36
(1) 4M x 36
(1) 4M x 36
NONE
36MB
(1) 1M x 36
(1) 8M x 36
NONE
NONE
40MB
(1) 1M x 36
(1) 1M x 36
(1) 4M x 36
(1) 4M x 36
40MB
(1) 1M x 36
(1) 1M x 36
(1) 8M x 36
NONE
48MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
NONE
48MB
(1) 4M x 36
(1) 8M x 36
NONE
NONE

DRAM CONFIGURATION (CON’T)
Size
Bank 0
Bank 1
Bank 2
Bank 3
64MB
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
(1) 4M x 36
64MB
(1) 16M x 36
NONE
NONE
NONE
64MB
(1) 4M x 36
(1) 4M x 36
(1) 8M x 36
NONE
64MB
(1) 8M x 36
(1) 8M x 36
NONE
NONE
65MB
(1) 256K x 36
(1) 16M x 36
NONE
NONE
68MB
(1) 1M x 36
(1) 16M x 36
NONE
NONE
68MB
(1) 1M x 36
(1) 8M x 36
(1) 8M x 36
NONE
72MB
(1) 1M x 36
(1) 1M x 36
(1) 16M x 36
NONE
72MB
(1) 1M x 36
(1) 1M x 36
(1) 8M x 36
(1) 8M x 36
80MB
(1) 4M x 36
(1) 16M x 36
NONE
NONE
80MB
(1) 4M x 36
(1) 8M x 36
(1) 8M x 36
NONE
96MB
(1) 4M x 36
(1) 4M x 36
(1) 16M x 36
NONE
96MB
(1) 4M x 36
(1) 4M x 36
(1) 8M x 36
(1) 8M x 36
96MB
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
NONE
128MB
(1) 16M x 36
(1) 16M x 36
NONE
NONE
128MB
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36
(1) 8M x 36

CACHE CONFIGURATION
Size
Bank 0
Bank 1
128KB
(4) 32K x 8
NONE
256KB
(4) 32K x 8
(4) 32K x 8
256KB
(4) 64K x 8
NONE
512KB
(4) 128K x 8
NONE

CACHE JUMPER CONFIGURATION
Size
JP1
JP2
128KB
pins 1 & 2, 4 & 5, 8 & 9 closed
pins 1 & 2, 4 & 5, 8 & 9 closed
256KB
pins 2 & 3, 5 & 6, 8 & 9 closed
pins 2 & 3, 5 & 6, 8 & 9 closed
256KB
pins 1 & 2, 5 & 6, 8 & 9 closed
pins 1 & 2, 4 & 5, 8 & 9 closed
512KB
pins 1 & 2, 5 & 6, 7 & 8 closed
pins 1 & 2, 4 & 5, 7 & 8 closed

CPU TYPE CONFIGURATION
Type
JP9
JP10
JP13
JP23
CX486S
2 & 3
2 & 3
1 & 2
2 & 3, 5 & 6, 7 & 8
SL80486SX
1 & 2
1 & 2
1 & 2
3 & 4, 5 & 6, 7 & 8
80486SX
1 & 2
1 & 2
Open
6 & 7
AMD486DXL
2 & 3
2 & 3
2 & 3
5 & 6, 7 & 8
80486DX/DX2
1 & 2
1 & 2
Open
5 & 6, 7 & 8
P24D
1 & 2
2 & 3
1 & 2
1 & 2, 3 & 4, 5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

CPU TYPE CONFIGURATION (CON’T)
Type
JP24
JP25
JP26
JP27
CX486S
2 & 3, 7 & 8
2 & 3
4 & 5
2 & 3, 7 & 8
SL80486SX
7 & 8
Open
1 & 2, 5 & 6
4 & 5, 7 & 8
80486SX
Open
Open
Open
7 & 8
AMD486DXL
3 & 4, 5 & 6
Open
Open
7 & 8
80486DX/DX2
7 & 8
Open
Open
7 & 8
P24D
7 & 8
1 & 2, 5 & 6
2 & 3, 5 & 6, 7 & 8
4 & 5, 6 & 7
Note: Pins designated should be in the closed position.

CPU SPEED CONFIGURATION
Speed
JP11
25MHz
pins 1 & 2, 5 & 6 closed
33MHz
pins 1 & 2, 3 & 4 closed
40MHz
pins 5 & 6 closed
50iMHz
pins 1 & 2, 5 & 6 closed
50MHz
pins 3 & 4 closed
66iMHz
pins 1 & 2, 3 & 4 closed

VESA WAIT STATE CONFIGURATION
Wait states
JP18
0 wait states
pins 1 & 2 closed
1 wait state
pins 2 & 3 closed

BUS SPEED CONFIGURATION
CPU speed
JP19
<= 33MHz
pins 1 & 2 closed
> 33MHz
pins 2 & 3 closed

Headaches Begone! A Systemic Approach To Healing Your Headaches

Don't Let Your Bike Seat Ruin Your Sex Life Book

VI15G Motherboard Settings and Configuration

Search

My Books

Discover

Processor	80486SX/CX486DX/AMD486DX/80486DX/ODP486SX/CX486DX2/AMD486DXL/AMD486DX2/80486DX2
Processor Speed	25/33/40/50(internal)/50/66(internal)MHz
Chip Set	SIS
Max. Onboard DRAM	128MB
Cache	128/256/512KB
BIOS	AMI
Dimensions	254mm x 220mm
I/O Options	32-bit VESA local bus slots (3), green PC connector
NPU Options	None

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	J1	Turbo LED (green PC LED)	J4 (pins 12 - 13)
Chassis fan power	J2	Turbo switch (green PC break)	J4 (pins 15 - 16)
Chassis fan power	J3	Reset switch	J4 (pins 19 - 20)
Power LED & keylock	J4 (pins 1 - 5)	32-bit VESA local bus slots	SL1 - SL3
Speaker	J4 (pins 6 - 10)
Note: The location of J3 is unidentified.

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation	JP6	pins 1 & 2 closed
	CMOS memory clear	JP6	pins 2 & 3 closed
»	Factory configured - do not alter	JP7	Open
»	Factory configured - do not alter	JP8	Open

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
1MB	(1) 256K x 36	NONE	NONE	NONE
2MB	(1) 256K x 36	(1) 256K x 36	NONE	NONE
2MB	(1) 512K x 36	NONE	NONE	NONE
4MB	(1) 256K x 36	(1) 256K x 36	(1) 512K x 36	NONE
4MB	(1) 512K x 36	(1) 512K x 36	NONE	NONE
4MB	(1) 1M x 36	NONE	NONE	NONE
5MB	(1) 256K x 36	(1) 1M x 36	NONE	NONE
6MB	(1) 256K x 36	(1) 256K x 36	(1) 1M x 36	NONE
6MB	(1) 512K x 36	(1) 1M x 36	NONE	NONE
8MB	(1) 256K x 36	(1) 256K x 36	(1) 512K x 36	(1) 1M x 36
8MB	(1) 512K x 36	(1) 512K x 36	(1) 1M x 36	NONE
8MB	(1) 1M x 36	(1) 1M x 36	NONE	NONE
8MB	(1) 2M x 36	NONE	NONE	NONE
10MB	(1) 256K x 36	(1) 256K x 36	(1) 1M x 36	(1) 1M x 36
12MB	(1) 512K x 36	(1) 512K x 36	(1) 1M x 36	(1) 1M x 36
12MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	NONE
16MB	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36	(1) 1M x 36
16MB	(1) 2M x 36	(1) 2M x 36	NONE	NONE
16MB	(1) 4M x 36	NONE	NONE	NONE
17MB	(1) 256K x 36	(1) 4M x 36	NONE	NONE
18MB	(1) 256K x 36	(1) 256K x 36	(1) 4M x 36	NONE
18MB	(1) 512K x 36	(1) 4M x 36	NONE	NONE
20MB	(1) 512K x 36	(1) 512K x 36	(1) 4M x 36	NONE
20MB	(1) 1M x 36	(1) 4M x 36	NONE	NONE
24MB	(1) 512K x 36	(1) 512K x 36	(1) 1M x 36	(1) 4M x 36
24MB	(1) 1M x 36	(1) 1M x 36	(1) 4M x 36	NONE
24MB	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36	NONE
32MB	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36	(1) 2M x 36
32MB	(1) 4M x 36	(1) 4M x 36	NONE	NONE
32MB	(1) 8M x 36	NONE	NONE	NONE
36MB	(1) 512K x 36	(1) 512K x 36	(1) 4M x 36	(1) 4M x 36
36MB	(1) 1M x 36	(1) 4M x 36	(1) 4M x 36	NONE
36MB	(1) 1M x 36	(1) 8M x 36	NONE	NONE
40MB	(1) 1M x 36	(1) 1M x 36	(1) 4M x 36	(1) 4M x 36
40MB	(1) 1M x 36	(1) 1M x 36	(1) 8M x 36	NONE
48MB	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36	NONE
48MB	(1) 4M x 36	(1) 8M x 36	NONE	NONE

DRAM CONFIGURATION (CON’T)
Size	Bank 0	Bank 1	Bank 2	Bank 3
64MB	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36	(1) 4M x 36
64MB	(1) 16M x 36	NONE	NONE	NONE
64MB	(1) 4M x 36	(1) 4M x 36	(1) 8M x 36	NONE
64MB	(1) 8M x 36	(1) 8M x 36	NONE	NONE
65MB	(1) 256K x 36	(1) 16M x 36	NONE	NONE
68MB	(1) 1M x 36	(1) 16M x 36	NONE	NONE
68MB	(1) 1M x 36	(1) 8M x 36	(1) 8M x 36	NONE
72MB	(1) 1M x 36	(1) 1M x 36	(1) 16M x 36	NONE
72MB	(1) 1M x 36	(1) 1M x 36	(1) 8M x 36	(1) 8M x 36
80MB	(1) 4M x 36	(1) 16M x 36	NONE	NONE
80MB	(1) 4M x 36	(1) 8M x 36	(1) 8M x 36	NONE
96MB	(1) 4M x 36	(1) 4M x 36	(1) 16M x 36	NONE
96MB	(1) 4M x 36	(1) 4M x 36	(1) 8M x 36	(1) 8M x 36
96MB	(1) 8M x 36	(1) 8M x 36	(1) 8M x 36	NONE
128MB	(1) 16M x 36	(1) 16M x 36	NONE	NONE
128MB	(1) 8M x 36	(1) 8M x 36	(1) 8M x 36	(1) 8M x 36

CACHE CONFIGURATION
Size	Bank 0	Bank 1
128KB	(4) 32K x 8	NONE
256KB	(4) 32K x 8	(4) 32K x 8
256KB	(4) 64K x 8	NONE
512KB	(4) 128K x 8	NONE

CACHE JUMPER CONFIGURATION
Size	JP1	JP2
128KB	pins 1 & 2, 4 & 5, 8 & 9 closed	pins 1 & 2, 4 & 5, 8 & 9 closed
256KB	pins 2 & 3, 5 & 6, 8 & 9 closed	pins 2 & 3, 5 & 6, 8 & 9 closed
256KB	pins 1 & 2, 5 & 6, 8 & 9 closed	pins 1 & 2, 4 & 5, 8 & 9 closed
512KB	pins 1 & 2, 5 & 6, 7 & 8 closed	pins 1 & 2, 4 & 5, 7 & 8 closed

CPU TYPE CONFIGURATION
Type	JP9	JP10	JP13	JP23
CX486S	2 & 3	2 & 3	1 & 2	2 & 3, 5 & 6, 7 & 8
SL80486SX	1 & 2	1 & 2	1 & 2	3 & 4, 5 & 6, 7 & 8
80486SX	1 & 2	1 & 2	Open	6 & 7
AMD486DXL	2 & 3	2 & 3	2 & 3	5 & 6, 7 & 8
80486DX/DX2	1 & 2	1 & 2	Open	5 & 6, 7 & 8
P24D	1 & 2	2 & 3	1 & 2	1 & 2, 3 & 4, 5 & 6, 7 & 8
Note: Pins designated should be in the closed position.

CPU TYPE CONFIGURATION (CON’T)
Type	JP24	JP25	JP26	JP27
CX486S	2 & 3, 7 & 8	2 & 3	4 & 5	2 & 3, 7 & 8
SL80486SX	7 & 8	Open	1 & 2, 5 & 6	4 & 5, 7 & 8
80486SX	Open	Open	Open	7 & 8
AMD486DXL	3 & 4, 5 & 6	Open	Open	7 & 8
80486DX/DX2	7 & 8	Open	Open	7 & 8
P24D	7 & 8	1 & 2, 5 & 6	2 & 3, 5 & 6, 7 & 8	4 & 5, 6 & 7
Note: Pins designated should be in the closed position.

CPU SPEED CONFIGURATION
Speed	JP11
25MHz	pins 1 & 2, 5 & 6 closed
33MHz	pins 1 & 2, 3 & 4 closed
40MHz	pins 5 & 6 closed
50iMHz	pins 1 & 2, 5 & 6 closed
50MHz	pins 3 & 4 closed
66iMHz	pins 1 & 2, 3 & 4 closed

VESA WAIT STATE CONFIGURATION
Wait states	JP18
0 wait states	pins 1 & 2 closed
1 wait state	pins 2 & 3 closed

BUS SPEED CONFIGURATION
CPU speed	JP19
<= 33MHz	pins 1 & 2 closed
> 33MHz	pins 2 & 3 closed
