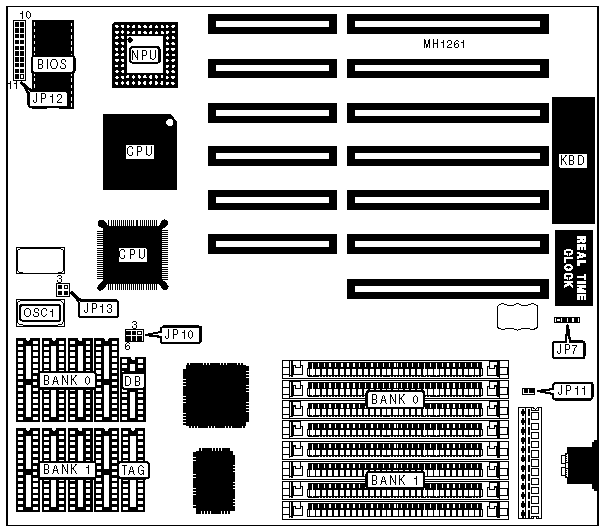

ISA486GLi MODEL I333A Motherboard Settings and Configuration

Processor	80386DX/CX486DLC
Processor Speed	33/40MHz
Chip Set	ALI
Max. Onboard DRAM	32MB
Cache	64/256KB
BIOS	Acer
Dimensions	220mm x 240mm
I/O Options	None
NPU Options	80387/CX387DLC

CONNECTIONS
Purpose	Location	Purpose	Location
External battery	JP7	Turbo LED	JP12/12 & 13
Power LED & keylock	JP12/1 - 5	Turbo switch	JP12/15 - 17
Speaker	JP12/7 - 10	Reset switch	JP12/19 & 20

USER CONFIGURABLE SETTINGS
Function		Jumper	Position
»	CMOS memory normal operation	JP11	open
	CMOS memory clear	JP11	closed
	CPU speed select 33MHz	JP13	pins 1 & 2 closed
	CPU speed select 40MHz	JP13	pins 1 & 2 and 3 & 4 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	(4) 256K x 9	NONE
2MB	(4) 256K x 9	(4) 256K x 9
4MB	(4) 1M x 9	NONE
5MB	(4) 1M x 9	(4) 256K x 9
8MB	(4) 1M x 9	(4) 1M x 9
16MB	(4) 4M x 9	NONE
17MB	(4) 256K x 9	(4) 4M x 9
20MB	(4) 1M x 9	(4) 4M x 9
32MB	(4) 4M x 9	(4) 4M x 9

SRAM CONFIGURATION
Size	Cache SRAM	Location	TAG	Dirty Bit (DB)	JP10
64KB	(8) 8K x 8	Banks 0 & 1	(1) 8K x 8	(1) 16K x 4	open
256KB	(8) 32K x 8	Banks 0 & 1	(1) 32K x 8	(1) 16K x 4	closed
Note:JP10 is closed by shorting pins 1 & 2, 3 & 4, and 5 & 6.
