1414 INTERNAL modem/telephone/ISDN Settings and Configuration






POWERCOM AMERICA, INC.

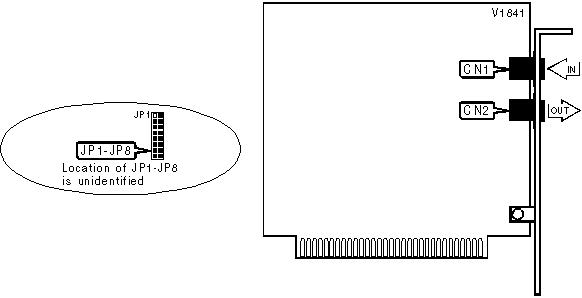

1414 INTERNAL

Card Type

Fax, Modem (asynchronous)

Chip Set

Unidentified

Maximum Data Rate

14.4Kbps

Maximum Fax Rate

14.4Kbps

Data Bus

8-bit ISA

Fax Class

Class I

Data Modulation Protocol

Bell 103/212A

ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis

Fax Modulation Protocol

ITU-T V.17, V.21CH2, V.27ter, V.29

Error Correction/Compression

MNP5, V.42bis

CONNECTIONS

Function

Label

Function

Label

Line in

CN1

Line out

CN2

SERIAL PORT ADDRESS

Setting

JP1

JP2

JP3

JP4

í COM1 (3F8h)

Closed

Closed

Open

Open

COM2 (2F8h)

Closed

Open

Open

Closed

COM3 (3E8h)

Open

Closed

Closed

Open

COM4 (2E8h)

Open

Open

Closed

Closed

INTERRUPT

Setting

JP5

JP6

JP7

JP8

2

Closed

Open

Open

Open

3

Open

Closed

Open

Open

í 4

Open

Open

Closed

Open

5

Open

Open

Open

Closed

Proprietary AT Command Set

See document V1834 for a full command summary.
