ACCURA 144B + FAX144 modem/telephone/ISDN Settings and Configuration






HAYES MICROCOMPUTER PRODUCTS, INC.

ACCURA 144B + FAX144

Modem Type

Data (synchronous/asynchronous)/Fax

Maximum Data Rate

14.4Kbps

Maximum Fax Rate

14.4Kbps

Data Bus

External

Fax Class

Class I & II

Data Modulation Protocol

Bell 103A/212A

ITU-T V.21, V.22, V.22bis, V.32, V.32bis

Fax Modulation Protocol

V.17, V.27ter, V.29

Error Correction/Compression

MNP2-5, V.42, V.42bis

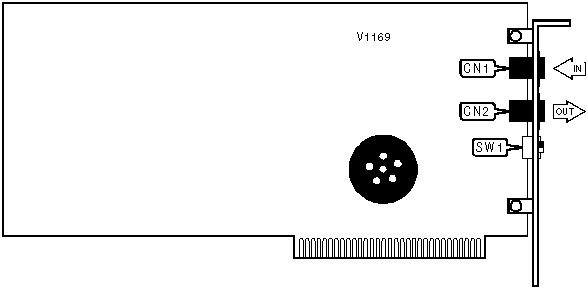

CONNECTIONS

Purpose

Location

Purpose

Location

Line in

CN1

Line out

CN2

SERIAL PORT SELECTION

Address

SW1/1

SW1/2

COM1:

On

On

COM2:

On

Off

COM3:

Off

On

COM4:

Off

Off
