GAMMAFAX XPI modem/telephone/ISDN Settings and Configuration

DIALOGIC CORPORATION

GAMMAFAX XPI

Card Type
Fax
Processor
80C188
Processor Speed
10MHz
Chipset
Rockwell 14.4 MFX
Maximum Onboard Memory
512KB DRAM
Maximum Fax Rate
9600bps
Fax Modulation
ITU-T V.27ter, V.29
Fax Class
N/A
Data Bus
8-bit ISA
Card Size
Full height, full length

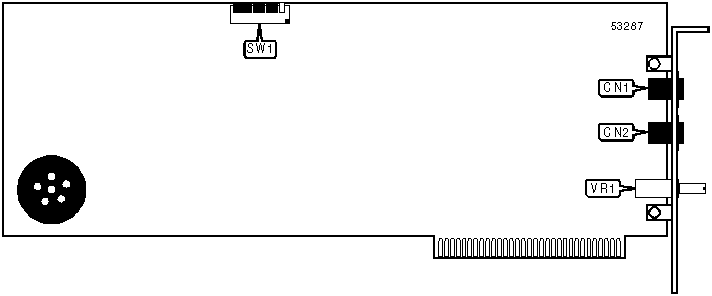

CONNECTIONS
Function
Label
Function
Label
Telephone line in
CN1
Volume control
VR1
Telephone line out
CN2

USER CONFIGURABLE SETTINGS
Setting
Label
Position
»
Factory configured - do not alter
SW1/6
Off
»
Factory configured - do not alter
SW1/7
On
»
Factory configured - do not alter
SW1/8
On

BASE I/O ADDRESS SELECTION
Setting
Channel
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
»
350h
0
Off
Off
Off
Off
Off

360h
1
On
Off
Off
Off
Off

370h
2
Off
On
Off
Off
Off

250h
3
On
On
Off
Off
Off
