SUPER MODEM 2400 (INT.) modem/telephone/ISDN Settings and Configuration
BOCA RESEARCH, INC.
SUPER MODEM 2400 (INT.)
Modem Type | Data (synchronous/asynchronous) |
Maximum Data Rate | 2400bps |
Data Bus | 8-bit ISA |
Data Modulation Protocol | Bell 103A/212A ITU-T V.21, V.22, V.22bis |

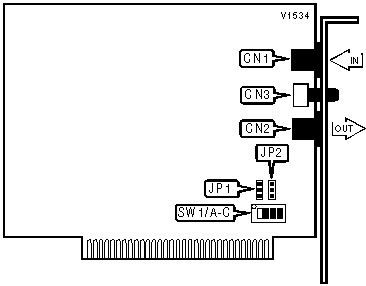

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Line-in | CN1 | Volume control | CN3 |
Line-out | CN2 | ||
IRQ SELECT | ||
| IRQ | JP1 | JP2 |
| » IRQ4 | Position IRQ4 | N/A |
| IRQ3 | N/A | Position IRQ3 |
Note: Manufacturer’s documentation does not specify exact jumper locations nor pin assignmentscorresponding to IRQ settings. | ||
BASE I/O ADDRESS SELECTION | ||
COM | SW1/1 | SW1/2 |
| » COM1 | On | On |
| COM2 | Off | On |
| COM3 | On | Off |
| COM4 | Off | Off |
SLOT 8 INSTALLATION | |
| Setting | SW1/3 |
| » Normal installation | Off |
| IBM XT slot 8 installation | On |
FACTORY CONFIGURED SETTINGS | |
Switch | Setting |
SW1/4 | Off |
Note: This switch may not be present on all models. | |
Proprietary AT Command Set
See document V1533 for a full command summary.
