SMART ONE 1200B modem/telephone/ISDN Settings and Configuration

BEST DATA PRODUCTS, INC.

SMART ONE 1200B

Modem Type	Data (asynchronous)
Maximum Data Rate	1200bps
Maximum Fax Rate	N/A
Data Bus	8-bit ISA
Fax Class	N/A
Data Modulation Protocol	Bell 103 & 212
Fax Modulation Protocol	N/A
Error Correction/Compression	Unidentified

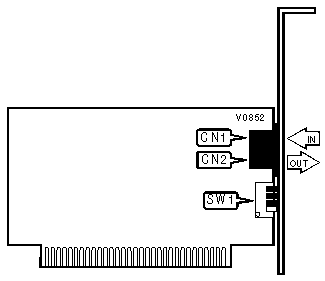

CONNECTIONS
Purpose
Location
Purpose
Location
Line-in
CN1
Line-out
CN2

BASE I/O ADDRESS SELECTION
COM/IRQ
SW1/1
SW1/4
í COM2/IRQ3
Off
On
COM1/IRQ4
On
On
COM3/IRQ3
On
On
COM4/IRQ4
Off
Off

AUTO-ANSWER FEATURE
Setting
SW1/3
í Enabled
On
Disabled (answer on command only)
Off

DATA TERMINAL READY (DTR)
Setting
SW1/4
í Controllable DTR
On
DTR low only
Off

AUTO-ANSWER FEATURE
Setting	SW1/3
í Enabled	On
Disabled (answer on command only)	Off
