1914BAV modem/telephone/ISDN Settings and Configuration
ARCHTEK AMERICA CORPORATION
1914BAV
Modem Type | Data (synchronous/asynchronous)/Fax/Voice |
Maximum Data Rate | 19.2Kbps |
Maximum Fax Rate | 14.4Kbps |
Data Bus | 8-bit ISA |
Fax Class | Class I |
Data Modulation Protocol | Bell 103J/212A ITU-T V.21, V.22, V.22bis, V.23, V.32, V.32bis AT&T V.32terbo |
Fax Modulation Protocol | ITU-T V.17, V.21CH2, V.27ter, V.29 |
Error Correction/Compression | MNP5, V.42, V.42bis |

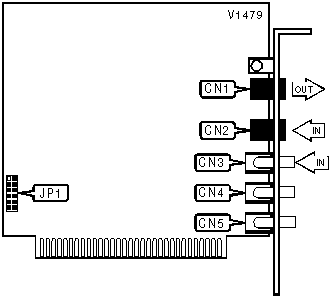

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Line out | CN1 | Speaker line out | CN4 |
Line in | CN2 | Microphone line in | CN5 |
Audio line in | CN3 | ||
BASE I/O ADDRESS SELECTION | |||
Port | JP1 pins 7 & 8 | JP1 pins 9 & 10 | JP1 pins 11 & 12 |
| » COM1: (100h) | Open | Open | Open |
í COM2: (180h) | Open | Closed | Open |
í COM3: (280h) | Closed | Open | Closed |
í COM4: (300h) | Closed | Closed | Open |
í COM5: (380h) | Closed | Closed | Closed |
INTERRUPT SELECTION | |||
IRQ | JP1 pins 1 & 2 | JP pins 3 & 4 | JP1 pins 5 & 6 |
í 5 | Open | Open | Closed |
í 7 | Open | Closed | Open |
| » 9 | Closed | Open | Open |
Proprietary AT Command Set
CALLING TONE | |
Type: | Register |
Format: | AT [cmds] S35=n [cmds] |
Example: | AT S35=1 DT555-1212<CR> |
Description: | Controls the transmission of the calling tone while dialing. |
í Command | Function |
í S35=0 | Calling tone disabled. |
| » S35=1 | Calling tone enabled. |
COMPRESSION | |
Type: | Configuration |
Format: | AT [cmds] %Cn [cmds] |
Example: | AT %C0 <CR> |
Description: | Selects data compression. |
í Command | Function |
í %C0 | Data compression disabled. |
| » %C1 | Data compression enabled. |
COMPRESSION | |
Type: | Configuration |
Format: | AT "Hn |
Example: | AT %C0 "H0 <CR> |
Description: | Selects data compression. |
í Command | Function |
í "H0 | Data compression disabled. |
| » "H1 | Data compression enabled. |
CONNECT MODE | |
Type: | Configuration |
Format: | AT [cmds] \Nn [cmds] |
Example: | AT \N0 DT555-1212 <CR> |
Description: | Sets connect mode. |
Command | Function |
í \N0 | Normal mode enabled. |
í \N1 | Direct mode enabled. |
í \N2 | Reliable mode enabled. |
| » \N3 | Auto-reliable mode enabled. |
í \N4 | LAPM mode enabled. |
