LCS-881N1 Memory card Settings and Configuration

Card Type	Memory card
Chipset/Controller	N/A
I/O Options	N/A
Maximum DRAM	32MB

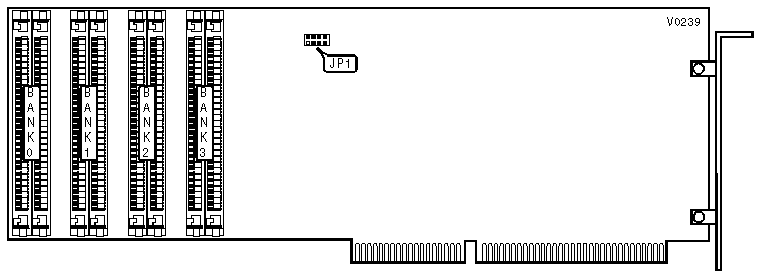

MEMORY CARD CONFIGURATION
Number of Memory cards installed		JP1
»	1	Pins 1 & 2 closed
	2	Pins 3 & 4 closed
	3	Pins 5 & 6 closed
	4	Pins 7 & 8 closed

DRAM CONFIGURATION
Size	Bank 0	Bank 1	Bank 2	Bank 3
512KB	(2) 256K x 9	None	None	None
1MB	(2) 256K x 9	(2) 256K x 9	None	None
1.5MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	None
2MB	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
2MB	(2) 1M x 9	None	None	None
2.5MB	(2) 1M x 9	(2) 256K x 9	None	None
3MB	(2) 1M x 9	(2) 256K x 9	(2) 256K x 9	None
3.5MB	(2) 1M x 9	(2) 256K x 9	(2) 256K x 9	(2) 256K x 9
4MB	(2) 1M x 9	(2) 1M x 9	None	None
4.5MB	(2) 1M x 9	(2) 1M x 9	(2) 256K x 9	None
5MB	(2) 1M x 9	(2) 1M x 9	(2) 256K x 9	(2) 256K x 9
6MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	None
6.5MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 256K x 9
8MB	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9	(2) 1M x 9
8MB	(2) 4M x 9	None	None	None
16MB	(2) 4M x 9	(2) 4M x 9	None	None
24MB	(2) 4M x 9	(2) 4M x 9	(2) 4M x 9	None
32MB	(2) 4M x 9	(2) 4M x 9	(2) 4M x 9	(2) 4M x 9
