CT-6250 IO card Settings and Configuration






UNIDENTIFIED

CT-6250

Card Type

Multi I/O card

Chipset Controller

Unknown

I/O Options

Parallel port, serial ports (2), game port, clock (unknown location)

Maximum Dram

N/A

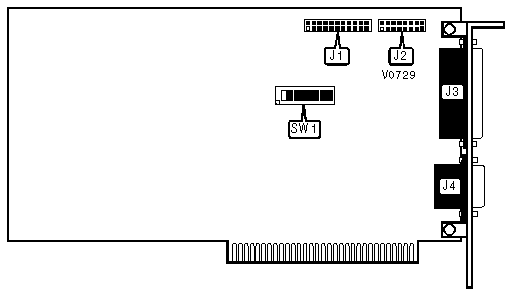

CONNECTIONS

Purpose

Location

Serial port 1 (COM1)

J1

Game port

J2

Parallel port

J3

Serial port 2 (COM2)

J4

FACTORY CONFIGURED SETTINGS-DO NOT ALTER

Switch

Position

SW1/6

On

GAME PORT CONGIGURATION

Port

SW1/1

Enabled

On

Disabled

Off

CLOCK CONFIGURATION

Clock

Address

SW1/2

SW1/8

Enabled

277h

On

Off

Enabled

377h

On

On

Disabled

N/A

Off

N/A

PARALLEL PORT CONFIGURATION

Port

Address

SW1/3

SW1/7

Enabled

278h (LPT1)

On

Off

Enabled

378h (LPT2)

On

On

Disabled

N/A

Off

N/A

SERIAL PORT CONFIGURATION

COM1

COM2

SW1/4

SW1/5

Enabled

Disabled

On

Off

Enabled

Enabled

On

On

Disabled

Disabled

Off

Off

Disabled

Enabled

Off

On
