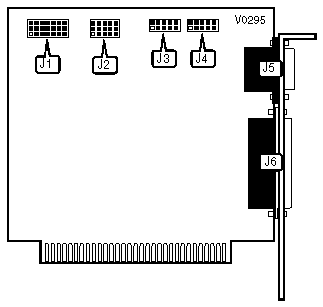

AT MULTI I/O AI-6, AT MULTI I/O AI2SG-6 IO card Settings and Configuration






UNIDENTIFIED

AT MULTI I/O AI-6, AT MULTI I/O AI2SG-6

Card Type

Multi I/O card

Chipset/Controller

Unknown

I/O Options

Game port, parallel port, serial ports (2)

Maximum DRAM

N/A

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 1

J3

Game port

J5

Serial port 2

J4

Parallel port

J6

SERIAL PORT CONFIGURATION

Port 1 (J3)

Port 2 (J4)

J1/1

J1/2

J1/3

J1/4

COM1

COM2

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 2 &3 closed

Pins 1 & 2 closed

COM1

COM4

Pins 2 & 3 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

COM1

Disabled

Pins 2 & 3 closed

Pins 1 & 2 closed

N/A

Pins 2 & 3 closed

COM3

COM2

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 2 & 3 closed

Pins 1 & 2 closed

COM3

COM4

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

Pins 1 & 2 closed

COM3

Disabled

Pins 1 & 2 closed

Pins 1 & 2 closed

N/A

Pins 2 & 3 closed

Disabled

Disabled

N/A

Pins 2 & 3 closed

N/A

Pins 2 & 3 closed

SERIAL PORT INTERRUPT SELECT

Port 1 (J3)

J2/1

J2/2

J2/3

J2/4

IRQ4

Pins 1 & 2 closed

N/A

N/A

N/A



IRQ3

N/A

Pins 1& 2 closed

N/A

N/A



IRQ5

N/A

N/A

Pins 1 & 2 closed

N/A



IRQ9

N/A

N/A

N/A

Pins 1 & 2 closed

SERIAL PORT INTERRUPT SELECT

Port 2 (J4)

J2/1

J2/2

J2/3

J2/4

IRQ3

N/A

Pins 2 & 3 closed

N/A

N/A



IRQ4

Pins 2 & 3 closed

N/A

N/A

N/A



IRQ5

N/A

N/A

Pins 2 & 3 closed

N/A



IRQ9

N/A

N/A

N/A

Pins 2 & 3 closed

PARALLEL PORT CONFIGURATION

LPT

J1/5

J1/6

1

Pins 2 & 3 closed

Pins 1 & 2 closed



2

Pins 1 & 2 closed

Pins 1 & 2 closed



Disabled

N/A

Pins 2 & 3 closed

PARALLEL PORT INTERRUPT SELECT

IRQ

J2/5

IRQ7

Pins 2 & 3 closed



IRQ5

Pins 1 & 2 closed

GAME PORT CONFIGURATION

Port

J1/7

Enabled

Pins 1 & 2 closed

Disabled

Pins 2 & 3 closed








TOP
