AC-700 MULTI I/O/FLOPPY DISK CONTROLLER CARD IO card Settings and Configuration






UNIDENTIFIED

AC-700 MULTI I/O/FLOPPY DISK CONTROLLER CARD

Card Type

Multi I/O card

Chipset/Controller

SMC

I/O Options

Clock, floppy drive interface, game port, parallel port, serial ports (2)

Maximum DRAM

N/A

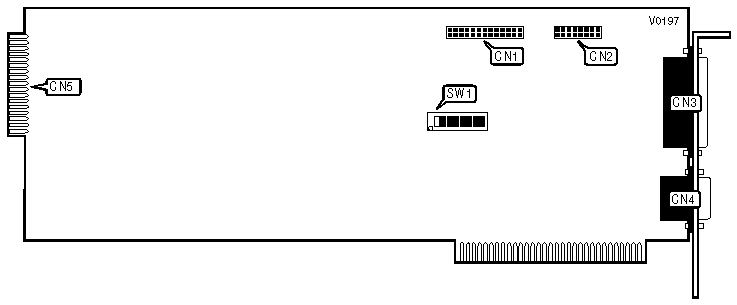

CONNECTIONS

Purpose

Location

Purpose

Location

Serial port 1

CN1

Serial port 2

CN4

Game port

CN2

Floppy drive interface

CN5

Parallel port

CN3



SERIAL PORT CONFIGURATION

Port 1 (CN1)

Port 2 (CN4)

SW1/4

SW1/5

Enabled

Enabled

On

On



Enabled

Disabled

Off

On



Disabled

Enabled

On

Off



Disabled

Disabled

Off

Off

PARALLEL PORT CONFIGURATION

LPT

Port

SW1/3

SW1/7

1

Enabled

On

On



2

Enabled

On

Off



N/A

Disabled

Off

N/A

GAME PORT CONFIGURATION

Setting

SW1/1

Enabled

On



Disabled

Off

CLOCK CONFIGURATION

Setting

Address

SW1/2

SW1/8

Enabled

377h

On

On



Enabled

277h

On

Off



Disabled

N/A

Off

N/A

FLOPPY DRIVE CONFIGURATION

Setting

SW1/6

Enabled

On



Disabled

Off
