EASY IO (DB-25 VERSION) IO card Settings and Configuration

STALLION TECHNOLOGIES

EASY IO (DB-25 VERSION)

Card Type
Serial
Processor
CD1400
Processor Speed
12.5MHz
Chip Set
Unidentified
I/O Options
Serial ports (8)
Data Bus
16-bit ISA

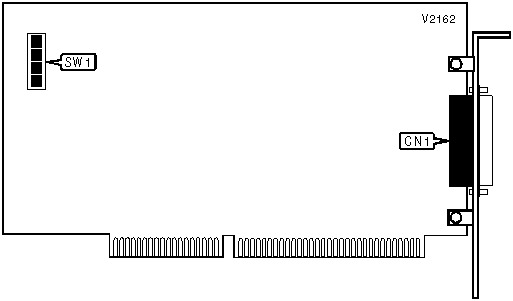

CONNECTIONS
Function
Label
Serial ports
CN1
Note: Serial ports are provided on an included adapter cable.

USER CONFIGURABLE SETTINGS
Setting
Label
Position
»
Factory configured - do not alter
SW1/7
Off
»
Factory configured - do not alter
SW1/8
Off
Note: The exact orientation of SW1/1 is unidentified.

SERIAL PORT ADDRESS
Setting
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6

200h
On
On
On
On
On
On

208h
Off
On
On
On
On
On

210h
On
Off
On
On
On
On

218h
Off
Off
On
On
On
On

220h
On
On
Off
On
On
On
»
2A0h
On
On
Off
On
Off
On

3D8h
Off
Off
On
Off
Off
Off

3E0h
On
On
Off
Off
Off
Off

3E8h
Off
On
Off
Off
Off
Off

3F0h
On
Off
Off
Off
Off
Off

3F8h
Off
Off
Off
Off
Off
Off
Note: A total of 63 base address settings are available. The switches are a binary representation of the hexadecimal memory addresses. SW1/6 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following hexadecimal values: SW1/6=100, SW1/5=80, SW1/4=40, SW1/3=20, SW1/2=10, SW1/1=8. Turn off the switches and add the values of the switches that are off to obtain the correct hexadecimal memory address. (Off=1, On=0)
