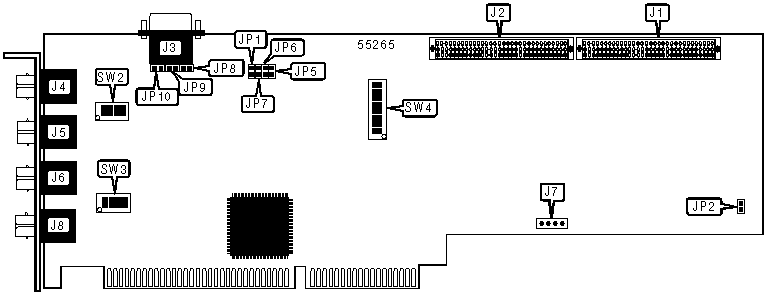

PDA12A IO card Settings and Configuration

Card Type	Multi-I/O card
Chip Set	Unidentified
I/O Options	Serial ports (2), channel in (2), master/slave connector, trigger connector, memory expansion connector, clock connector
Data Bus	32-bit PCI

CONNECTIONS
Function	Label	Function	Label
Signatec Auxiliary Bus (SAB) interface	J1	Channel 2 in	J5
Signatec Auxiliary Bus (SAB) interface	J2	Trigger connector	J6
Master - Slave connector	J3	Memory expansion connector	J7
Channel 1 in	J4	Clock connector	J8

USER CONFIGURABLE SETTINGS
Function	Label	Position
Factory configured - do not alter	JP3	Reserved
Factory configured - do not alter	JP4	Reserved
Input signal channel 1 - AC	SW2/1	Off
Input signal channel 1 - DC	SW2/1	On
Factory configured - do not alter	SW2/2	On
Factory configured - do not alter	SW2/3	On
Input signal channel 2 - AC	SW2/4	Off
Input signal channel 2 - DC	SW2/4	On
Trigger in	SW3/1 - SW3/4	Off
Trigger out	SW3/1 - SW3/4	On
Note: The locations of JP3 and JP4 are unidentified.

BOARD SELECTION SETTINGS
Board	JP1	JP2	JP5	JP6	JP7	JP8	JP9	JP10
Master	Closed	Closed	Closed	Closed	Closed	Closed	Closed	Closed
Single	Open	Closed	Open	Open	Open	Open	Open	Open
Slave	Open	Open	Open	Open	Open	Open	Open	Open

BOARD IDENTIFICATION
Setting	SW4/1	SW4/2	SW4/3	SW4/4	SW4/5	SW4/6	SW4/7	SW4/8
Master	On	Off	Off	Off	On	Off	Off	Off
Slave #1	Off	On	Off	Off	Off	On	Off	Off
Slave #2	Off	Off	On	Off	Off	Off	On	Off
Slave #3	Off	Off	Off	On	Off	Off	Off	On
