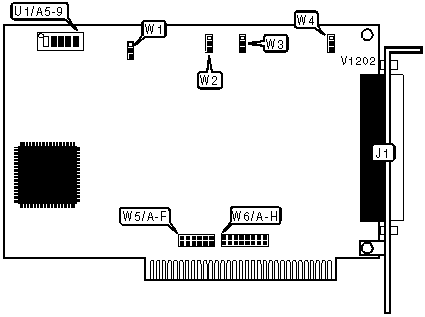

LAB-PC+ IO card Settings and Configuration






NATIONAL INSTRUMENTS

LAB-PC+

Card Type

Analog to digital timing converter

Chipset Controller

ACT A1010A

I/O Options

Analog input, digital input, digital output

Maximum DRAM

N/A

CONNECTIONS

Purpose

Location

50-pin I/O interface connector

J1

DMA CHANNEL SELECTION

DMA

W6/A

W6/B

W6/C

W6/D

W6/E

W6/F

W6/G

W6/H

3

Open

Open

Open

Open

Open

Open

Closed

Closed



1

Open

Open

Closed

Closed

Open

Open

Open

Open



2

Open

Open

Open

Open

Closed

Closed

Open

Open



Disabled

Closed

Closed

Open

Open

Open

Open

Open

Open

BASE I/O ADDRESS SELECTION

Address

U1/A5

U1/A6

U1/A7

U1/A8

U1/A9

260h

Off

Off

On

On

Off



000h

On

On

On

On

On



020h

Off

On

On

On

On



040h

On

Off

On

On

On



060h

Off

Off

On

On

On



080h

On

On

Off

On

On



360h

Off

Off

On

Off

Off



380h

On

On

Off

Off

Off



3A0h

Off

On

Off

Off

Off



3C0h

On

Off

Off

Off

Off



3E0h

Off

Off

Off

Off

Off

Note: A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. Switch A9 is the Most Significant Bit and switch A5 is the Least Significant Bit. The switches have the following decimal values: switch A9=512, A8=256, A7=128, A6=64, A5=32. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0)

INTERRUPT SELECTION

IRQ

W5/A

W5/B

W5/C

W5/D

W5/E

W5/F

5

Open

Open

Closed

Open

Open

Open



3

Closed

Open

Open

Open

Open

Open



4

Open

Closed

Open

Open

Open

Open



6

Open

Open

Open

Closed

Open

Open



7

Open

Open

Open

Open

Closed

Open



9

Open

Open

Open

Open

Open

Closed



Disabled

Open

Open

Open

Open

Open

Open

ANALOG OUTPUT CONFIGURATION

Type

W1 (Channel 0)

W2 (Channel 1)

Bipolar output

Pins 1 & 2 closed

Pins 1 & 2 closed



Unipolar output

Pins 2 & 3 closed

Pins 2 & 3 closed

ANALOG INPUT CONFIGURATION

Type

W4

RSE input

Pins 1 & 2 closed



NRSE/DIFF input

Pins 2 & 3 closed

ANALOG INPUT POLARITY CONFIGURATION

Type

W3

Bipolar input

Pins 1 & 2 closed



Unipolar input

Pins 2 & 3 closed
