C218 PLUS IO card Settings and Configuration

MOXA TECHNOLOGIES CO., LTD.

C218 PLUS

Card Type
Multiport controller
Chip Set
Unidentified
Maximum Transfer Rate
115.2Kbps
Maximum Onboard Memory
512KB RAM
I/O Options
8 RS-232/RS-422 serial ports via octopus cable

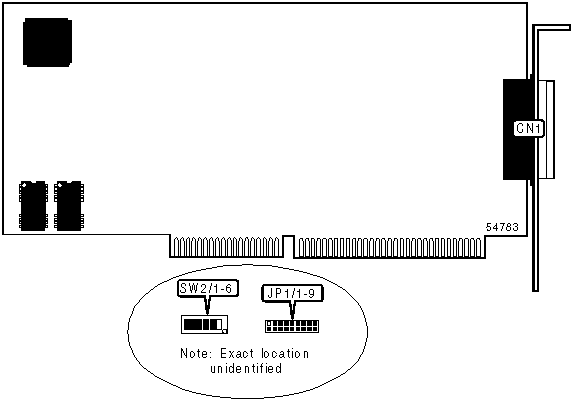

CONNECTIONS
Function
Location
25-pin octopus cable connector
CN1

BASE ADDRESS SELECTION
Address
SW2/1
SW2/2
SW2/3
SW2/4
SW2/5
SW2/6
C8000h
On
Off
On
On
On
On
CC000h
Off
Off
On
On
On
On
D0000h
On
On
Off
On
On
On
D4000h
Off
On
Off
On
On
On
D8000h
On
Off
Off
On
On
On
DC000h
Off
Off
Off
On
On
On
4C8000h
On
Off
On
Off
On
On
4CC000h
Off
Off
On
Off
On
On
4D0000h
On
On
Off
Off
On
On
4D4000h
Off
On
Off
Off
On
On
4D8000h
On
Off
Off
Off
On
On
4DC000h
Off
Off
Off
Off
On
On
8C8000h
On
Off
On
On
Off
On
8CC000h
Off
Off
On
On
Off
On
8D0000h
On
On
Off
On
Off
On

BASE ADDRESS SELECTION (CONT.)
Address
SW2/1
SW2/2
SW2/3
SW2/4
SW2/5
SW2/6
8D4000h
Off
On
Off
On
Off
On
8D8000h
On
Off
Off
On
Off
On
8DC000h
Off
Off
Off
On
Off
On
AC8000h
On
Off
On
Off
Off
On
ACC000h
Off
Off
On
Off
Off
On
AD0000h
On
On
Off
Off
Off
On
AD4000h
Off
On
Off
Off
Off
On
AD8000h
On
Off
Off
Off
Off
On
ADC000h
Off
Off
Off
Off
Off
On
CC8000h
On
Off
On
On
On
Off
CCC000h
Off
Off
On
On
On
Off
CD0000h
On
On
Off
On
On
Off
CD4000h
Off
On
Off
On
On
Off
CD8000h
On
Off
Off
On
On
Off
CDC000h
Off
Off
Off
On
On
Off
DC8000h
On
Off
On
Off
On
Off
DCC000h
Off
Off
On
Off
On
Off
DD0000h
On
On
Off
Off
On
Off
DD4000h
Off
On
Off
Off
On
Off
DD8000h
On
Off
Off
Off
On
Off
DDC000h
Off
Off
Off
Off
On
Off
FC8000h
On
Off
On
On
Off
Off
FCC000h
Off
Off
On
On
Off
Off
FD0000h
On
On
Off
On
Off
Off
FD4000h
Off
On
Off
On
Off
Off
FD8000h
On
Off
Off
On
Off
Off
FDC000h
Off
Off
Off
On
Off
Off

INTERRUPT SELECTION
IRQ
JP1/1
JP1/2
JP1/3
JP1/4
JP1/5
JP1/6
JP1/7
JP1/8
JP1/9
IRQ2
Closed
Open
Open
Open
Open
Open
Open
Open
Open
IRQ3
Open
Closed
Open
Open
Open
Open
Open
Open
Open
IRQ4
Open
Open
Closed
Open
Open
Open
Open
Open
Open
IRQ5
Open
Open
Open
Closed
Open
Open
Open
Open
Open
IRQ7
Open
Open
Open
Open
Closed
Open
Open
Open
Open
IRQ10
Open
Open
Open
Open
Open
Closed
Open
Open
Open
IRQ11
Open
Open
Open
Open
Open
Open
Closed
Open
Open
IRQ12
Open
Open
Open
Open
Open
Open
Open
Closed
Open
IRQ15
Open
Open
Open
Open
Open
Open
Open
Open
Closed
