MPMC102 IO card Settings and Configuration

Card Type

Digital I/O card

I/O Options

SCSI-2 connector

Hard Drives supported

Up to 15 SCSI-2 Fast/Wide devices

Data Bus

PCI Mezzanine

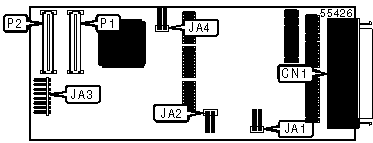

CONNECTIONS

Function

Label

Function

Label

SCSI-2 connector

CN1

PCI mezzanine card connector

P2

PCI mezzanine card connector

P1

USER CONFIGURABLE SETTINGS

Function

Label

Position

?? Card supplies terminal power to SCSI bus

JA1

Closed

Card does not supply terminal power to SCSI bus

JA1

Open

Card is first or last device on SCSI bus

JA2

Closed

? Card is not first or last device on SCSI bus

JA2

Open

? Factory configured - do not alter

JA3

Open

? Little endian mode enabled

JA4

Open

Big endian mode enabled

JA4

Closed

MISCELLANEOUS TECHNICAL NOTES

MPMC102 supports differential SCSI-2 connections
