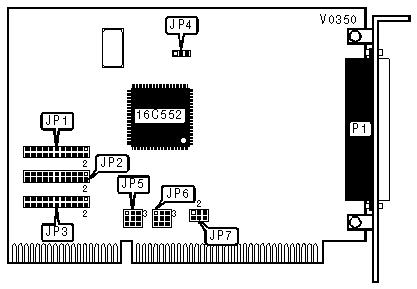

I-1002 IO card Settings and Configuration

Card Type	Multi I/O
Chipset Controller	Startech 16C552
I/O Options	Serial ports (2), parallel port
Maximum Dram	N/A

CONNECTIONS
Purpose	Location
Serial ports (2), parallel port	P1
Note: Individual ports are provided by an included adapter cable.

SERIAL PORT 1 INTERRUPT SELECTION
IRQ	JP1
2/9	Pins 1 & 2 closed
3	Pins 3 & 4 closed
4	Pins 5 & 6 closed
5	Pins 7 & 8 closed
6	Pins 9 & 10 closed
7	Pins 11 & 12 closed
10	Pins 13 & 14 closed
11	Pins 15 & 16 closed
12	Pins 17 & 18 closed
14	Pins 19 & 20 closed
15	Pins 21 & 22 closed

SERIAL PORT 2 INTERRUPT SELECTION
IRQ	JP2
2/9	Pins 1 & 2 closed
3	Pins 3 & 4 closed
4	Pins 5 & 6 closed
5	Pins 7 & 8 closed
6	Pins 9 & 10 closed
7	Pins 11 & 12 closed
10	Pins 13 & 14 closed
11	Pins 15 & 16 closed
12	Pins 17 & 18 closed
14	Pins 19 & 20 closed
15	Pins 21 & 22 closed

PARALLEL PORT INTERRUPT SELECTION
IRQ	JP3
2	Pins 1 & 2 closed
3	Pins 3 & 4 closed
4	Pins 5 & 6 closed
5	Pins 7 & 8 closed
6	Pins 9 & 10 closed
7	Pins 11 & 12 closed
10	Pins 13 & 14 closed
11	Pins 15 & 16 closed
12	Pins 17 & 18 closed
14	Pins 19 & 20 closed
15	Pins 21 & 22 closed

PARALLEL PORT CONFIGURATION
Mode	JP4
Bidirectional	Pins 1 & 2 closed
Unidirectional	Pins 2 & 3 closed

SERIAL PORT 1 ADDRESS SELECTION
Address	JP5
3F8h (COM1:)	Pins 1 & 2, 4 & 5, 7 & 8 closed
2F8h (COM2:)	Pins 1 & 2, 4 & 5, 8 & 9 closed
3E8h (COM3:)	Pins 1 & 2, 5 & 6, 7 & 8 closed
2E8h (COM4:)	Pins 1 & 2, 5 & 6, 8 & 9 closed
308h	Pins 2 & 3, 4 & 5, 7 & 8 closed
318h	Pins 2 & 3, 4 & 5, 8 & 9 closed
338h	Pins 2 & 3, 5 & 6, 7 & 8 closed
Disabled	Pins 2 & 3, 5 & 6, 8 & 9 closed

SERIAL PORT 2 ADDRESS SELECTION
Address	JP6
3F8h (COM1:)	Pins 1 & 2, 4 & 5, 7 & 8 closed
2F8h (COM2:)	Pins 1 & 2, 4 & 5, 8 & 9 closed
3E8h (COM3:)	Pins 1 & 2, 5 & 6, 7 & 8 closed
2E8h (COM4:)	Pins 1 & 2, 5 & 6, 8 & 9 closed
308h	Pins 2 & 3, 4 & 5, 7 & 8 closed
318h	Pins 2 & 3, 4 & 5, 8 & 9 closed
338h	Pins 2 & 3, 5 & 6, 7 & 8 closed
Disabled	Pins 2 & 3, 5 & 6, 8 & 9 closed

PARALLEL PORT ADDRESS SELECTION
Address	JP7
3BCh (LPT1:)	Pins 1 & 2, 4 & 5 closed
378h (LPT2:)	Pins 1 & 2, 5 & 6 closed
278H (LPT3:)	Pins 2 & 3, 4 & 5 closed
Disabled	Pins 2 & 3, 5 & 6 closed
