GESSIO-12 IO card Settings and Configuration






GESPAC

GESSIO-12

Card Type

Serial controller

I/O Options

serial ports (4)

Data Bus

Proprietary

Card Size

Half-length, half-height card

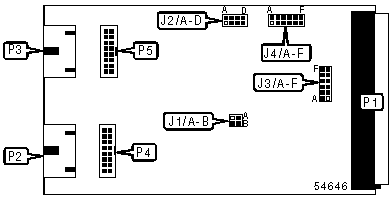

CONNECTIONS

Function

Label

Function

Label

G-64/G-96 bus interface

P1

DUART 2 channel A

P4

DUART 1 channel A

P2

DUART 2 channel B

P5

DUART 1 channel B

P3



USER CONFIGURABLE SETTINGS

Function

Label

Position

Single level of vectored interrupt

J2/A

Closed

Multi level of vectored interrupt

J2/A

Open

IPL0 MSB-interrupt priority level enabled

J2/B

Closed

IPL0 MSB-interrupt priority level disabled

J2/B

Open

IPL1 MSB-interrupt priority level enabled

J2/C

Closed

IPL1 MSB-interrupt priority level disabled

J2/C

Open

IPL2 LSB-interrupt priority level enabled

J2/D

Closed

IPL2 LSB-interrupt priority level disabled

J2/D

Open

ADDRESS SELECTION

Address

J4/A

J4/B

J4/C

J4/D

J4/E

J4/F

A4

Open

Open

Open

Open

Open

Closed

A5

Open

Open

Open

Open

Closed

Open

A6

Open

Open

Open

Closed

Open

Open

A7

Open

Open

Closed

Open

Open

Open

A8

Open

Closed

Open

Open

Open

Open

A9

Closed

Open

Open

Open

Open

Open

INTERRUPT SELECTION

IRQ

J3/A

J3/B

J3/C

J3/D

J3/E

J3/F

1

Open

Open

Open

Open

Closed

Open

2

Open

Open

Open

Closed

Open

Open

3

Open

Open

Closed

Open

Open

Open

4

Open

Closed

Open

Open

Open

Open

5

Closed

Open

Open

Open

Open

Open

NMI

Open

Open

Open

Open

Open

Closed

INTERRUPT PRIORITY

Priority

J1/A

J1/B

DUART 1 high; DUART 2 low

Open

Closed

DUART 1 low; DUART 2 high

Open

Open








TOP
