EXABYTE 2 MBIT ACCELERATOR CARD IO card Settings and Configuration

Card Type	Tape drive controller
Tape Drives supported	EXB-1500, Eagle 96, Eagle TR-3, Eagle Nest TR-3
Data Bus	8-bit ISA
Card Size	Half-length, full-height

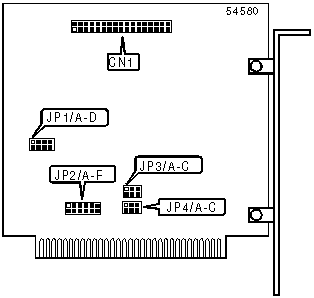

CONNECTIONS
Function	Location
Tape drive interface	CN1

I/O ADDRESS
Address	JP1/A	JP1/B	JP1/C	JP1/D
360h	Open	Open	Open	Closed
370h	Open	Open	Closed	Open
3E0h	Open	Closed	Open	Open
3F0h	Closed	Open	Open	Open

DMA CHANNEL SELECTION
Channel	JP3/A	JP3/B	JP3/C	JP4/A	JP4/B	JP4/C
1	Open	Open	Closed	Open	Open	Closed
2	Open	Closed	Open	Open	Closed	Open
3	Closed	Open	Open	Closed	Open	Open

INTERRUPT SETTING
IRQ	JP2/A	JP2/B	JP2/C	JP2/D	JP2/E	JP2/F
3	Closed	Open	Open	Open	Open	Open
4	Open	Closed	Open	Open	Open	Open
5	Open	Open	Closed	Open	Open	Open
6	Open	Open	Open	Closed	Open	Open
7	Open	Open	Open	Open	Closed	Open
9	Open	Open	Open	Open	Open	Closed

MISCELLANEOUS TECHNICAL NOTES

The 2 Mbit accelerator card allows the tape drive to write in QIC-3010 and QIC-3020 formats.
