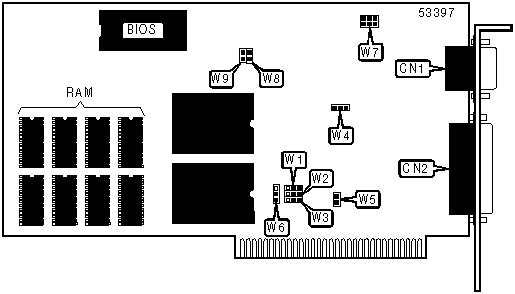

FONTVIEW (EV-233A) IO card Settings and Configuration

Card Type	Multi-I/O card
Chip Set	Unidentified
Maximum Onboard Memory	2Mb
I/O Options	Serial port, Parallel port
Hard Drives supported	None
Floppy drives supported	None
Data Bus	8-bit ISA
Card Size	Half-length, full-height card

CONNECTIONS
Function	Label	Function	Label
9-pin serial port	CN1	25-pin printer port	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Factory configured - do not alter.	W4	Unidentified
»	Factory configured - do not alter. (PC/XT slot)	W5	Unidentified
»	Factory configured - do not alter.	W7	Unidentified
»	Factory configured - do not alter.	W8	Unidentified
»	Factory configured - do not alter.	W9	Unidentified

PARALLEL PORT ADDRESS SELECTION
Setting		W1	W2	W3
»	LPT1 (378h)	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
	LPT2 (278h)	Pins 2 & 3 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	LPT3 (3BCh)	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 2 closed
	Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed

PARALLEL PORT INTERRUPT SELECTION
IRQ	W6
IRQ5	Pins 1 & 2 closed
IRQ7	Pins 2 & 3 closed
