CONNECTPLUS DL IO card Settings and Configuration

EMULEX CORPORATION

CONNECTPLUS DL

Card Type
Serial card
Chip Set
Unidentified
Data Bus
16-bit ISA

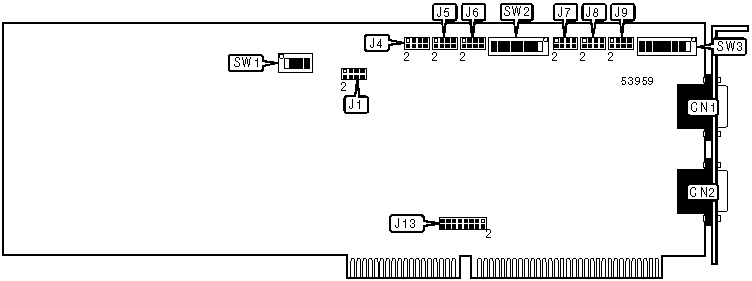

CONNECTIONS
Function
Label
Function
Label
9-pin serial port 1
CN1
9-pin serial port 2
CN2

USER CONFIGURABLE SETTINGS
Function
Label
Position
»
Factory configured – do not alter (software compatibility level)
J1/pins 1 & 2
Closed
»
Factory configured – do not alter (control register 4)
J1/pins 3 & 4
Closed
»
Factory configured – do not alter (window group)
J1/pins 5 & 6
Closed
»
Factory configured – do not alter (memory size)
J1/pins 7 & 8
Closed

INTERRUPT SELECTION
IRQ
J13

IRQ2
Pins 1 & 2 closed
»
IRQ3
Pins 3 & 4 closed

IRQ4
Pins 5 & 6 closed

IRQ5
Pins 7 & 8 closed

IRQ10
Pins 9 & 10 closed

IRQ11
Pins 11 & 12 closed

IRQ12
Pins 13 & 14 closed

IRQ15
Pins 15 & 16 closed

BASE I/O ADDRESS SELECTION
Setting
SW1/1
SW1/2
SW1/3
SW1/4

03C
On
On
On
On

07C
Off
On
On
On

0BC
On
Off
On
On

0FC
Off
Off
On
On

13C
On
On
Off
On

17C
Off
On
Off
On

1BC
On
Off
Off
On

1FC
Off
Off
Off
On

23C
On
On
On
Off

27C
Off
On
On
Off

2BC
On
Off
On
Off

2FC
Off
Off
On
Off
»
33C
On
On
Off
Off

37C
Off
On
Off
Off

3BC
On
Off
Off
Off

3FC
Off
Off
Off
Off

SERIAL PORT 1 DTE SELECTION
Setting
J7
J8
J9
RS-232
1 & 2, 3 & 4, 5 & 6, 7 & 8
1 & 2, 3 & 4, 5 & 6, 7 & 8
1 & 2, 3 & 4, 5 & 6, 7 & 8
V.35
1 & 2, 3 & 4, 5 & 6, 7 & 8
1 & 2, 3 & 4, 5 & 6, 7 & 8
1 & 3, 2 & 4, 5 & 7, 6 & 8
Note: Pins designated should be in the closed position.

SERIAL PORT 1 DTE SELECTION (CON’T)
Setting
SW3/1
SW3/2
SW3/3
SW3/4
SW3/5
SW3/6
SW3/7
SW3/8
RS-232
On
On
On
On
On
On
On
Off
V.35
Off
Off
Off
Off
Off
Off
Off
On

SERIAL PORT 2 DTE SELECTION
Setting
J4
J5
J6
RS-232
1 & 2, 3 & 4, 5 & 6, 7 & 8
1 & 2, 3 & 4, 5 & 6, 7 & 8
1 & 2, 3 & 4, 5 & 6, 7 & 8
V.35
1 & 2, 3 & 4, 5 & 6, 7 & 8
1 & 2, 3 & 4, 5 & 6, 7 & 8
1 & 3, 2 & 4, 5 & 7, 6 & 8
Note: Pins designated should be in the closed position.

SERIAL PORT 2 DTE SELECTION (CON’T)
Setting
SW2/1
SW2/2
SW2/3
SW2/4
SW2/5
SW2/6
SW2/7
SW2/8
RS-232
On
On
On
On
On
On
On
Off
V.35
Off
Off
Off
Off
Off
Off
Off
On

SERIAL PORT 1 DCE SELECTION
Setting
J7
J8
J9
RS-232
1 & 2, 3 & 4, 5 & 6, 7 & 8
1 & 2, 3 & 4, 5 & 6, 7 & 8
1 & 2, 3 & 4, 5 & 6, 7 & 8
V.35
1 & 3, 2 & 4, 5 & 7, 6 & 8
1 & 3, 2 & 4, 5 & 7, 6 & 8
1 & 3, 2 & 4, 5 & 7, 6 & 8
Note: Pins designated should be in the closed position.

SERIAL PORT 1 DCE SELECTION (CON’T)
Setting
SW3/1
SW3/2
SW3/3
SW3/4
SW3/5
SW3/6
SW3/7
SW3/8
RS-232
Off
On
On
On
On
On
On
On
V.35
Off
Off
On
On
Off
On
On
On

SERIAL PORT 2 DCE SELECTION
Setting
J4
J5
J6
RS-232
1 & 2, 3 & 4, 5 & 6, 7 & 8
1 & 2, 3 & 4, 5 & 6, 7 & 8
1 & 2, 3 & 4, 5 & 6, 7 & 8
V.35
1 & 3, 2 & 4, 5 & 7, 6 & 8
1 & 3, 2 & 4, 5 & 7, 6 & 8
1 & 3, 2 & 4, 5 & 7, 6 & 8
Note: Pins designated should be in the closed position.

SERIAL PORT 2 DCE SELECTION (CON’T)
Setting
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
SW1/7
SW1/8
RS-232
Off
On
On
On
On
On
On
On
V.35
Off
Off
On
On
Off
On
On
On
