EICONCARD HSI/PC 1MB IO card Settings and Configuration

EICON TECHNOLOGY CORPORATION

EICONCARD HSI/PC 1MB

Card Type
Serial X.25
Processor
68000 (exact location unidentified)
Processor Speed
16MHz
Maximum Onboard Memory
1MB RAM
I/O Options
Serial port
Data Bus
16-bit ISA
Error Correction/Compression
Generic Lempel-Ziv

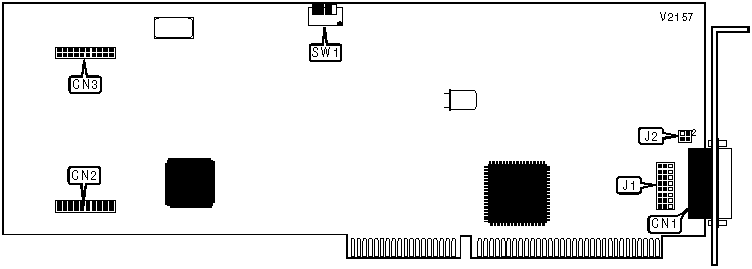

CONNECTIONS
Function
Label
Function
Label
V.24, V.35, or X.21 port
CN1
Compression daughterboard headers
CN2 & CN3
Note: CN1 is a 3-row DB-26 connector. Standard port configurations are provided by included adapter cables.

USER CONFIGURABLE SETTINGS
Setting
Label
Position
»
V.24 or V.35 interface for port 1
J1
Pins 2 & 3 closed

X.21 interface for port 1
J1
Pins 1 & 2 closed
»
Electrical ground connected to signal ground
J2
Pins 1 & 2 closed

Electrical ground not connected to signal ground
J2
Pins 3 & 4 closed
»
Card will use primary I/O address
SW1/1
Off

Card will use secondary I/O address
SW1/1
On
Note: A single-block jumper is provided for J1. It closes all pins 1 & 2 or all pins 2 & 3 simultaneously.

BASE I/O ADDRESS
Primary
Secondary
SW1/2
SW1/3
SW1/4

278h
678h
Off
Off
Off

280h
680h
Off
Off
On

378h
778h
Off
On
Off
»
380h
780h
Off
On
On

380h
780h
On
Off
Off

388h
788h
On
Off
On

390h
790h
On
On
Off

398h
798h
On
On
On
Note: If a card is set to use a secondary address, no other card in the system may be set to its associated primary address except for another EiconCard.
