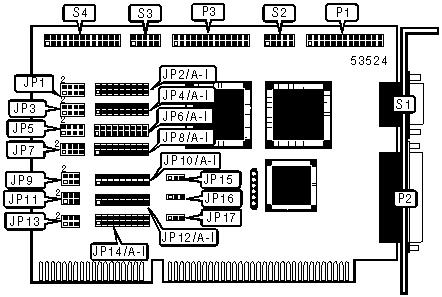

Fastisa-4090 IO card Settings and Configuration

Card Type	Parallel & Serial card
Chip Set	ADP/Startech
Maximum Onboard Memory	None
I/O Options	Parallel ports (3), serial ports (4)
Data Bus	16-bit ISA
Floppy drives supported	None

CONNECTIONS
Function	Location	Function	Location
26-pin parallel port 1	P1	10-pin serial port 2	S2
25-pin parallel port 2	P2	10-pin serial port 3	S3
26-pin parallel port 3	P3	26-pin serial port 4	S4
9-pin serial port 1	S1

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Printer port P1 is bi-directional mode	JP15	Pins 1 & 2 closed
	Printer port P1 is normal mode	JP15	Pins 2 & 3 closed
»	Printer port P2 is bi-directional mode	JP16	Pins 1 & 2 closed
	Printer port P2 is normal mode	JP16	Pins 2 & 3 closed
»	Printer port P3 is bi-directional mode	JP17	Pins 1 & 2 closed
	Printer port P3 is normal mode	JP17	Pins 2 & 3 closed

SERIAL PORT 1 ADDRESS SELECTION
COM		JP1/pins 1 & 2	JP1/pins 3 & 4	JP1/pins 5 & 6	JP1/pins 7 & 8
»	COM1(3F8h)	Closed	Open	Open	Open
	COM2(2F8h)	Open	Closed	Open	Open
	COM3(3E8h)	Open	Open	Closed	Open
	COM4(2E8h)	Open	Open	Open	Closed

SERIAL PORT 2 ADDRESS SELECTION
COM		JP3/pins 1 & 2	JP3/pins 3 & 4	JP3/pins 5 & 6	JP3/pins 7 & 8
	COM1(3F8h)	Closed	Open	Open	Open
»	COM2(2F8h)	Open	Closed	Open	Open
	COM3(3E8h)	Open	Open	Closed	Open
	COM4(2E8h)	Open	Open	Open	Closed

SERIAL PORT 3 ADDRESS SELECTION
COM		JP5/pins 1 & 2	JP5/pins 3 & 4	JP5/pins 5 & 6	JP5/pins 7 & 8
	COM1(3F8h)	Closed	Open	Open	Open
	COM2(2F8h)	Open	Closed	Open	Open
»	COM3(3E8h)	Open	Open	Closed	Open
	COM4(2E8h)	Open	Open	Open	Closed

SERIAL PORT 4 ADDRESS SELECTION
COM		JP7/pins 1 & 2	JP7/pins 3 & 4	JP7/pins 5 & 6	JP7/pins 7 & 8
	COM1(3F8h)	Closed	Open	Open	Open
	COM2(2F8h)	Open	Closed	Open	Open
	COM3(3E8h)	Open	Open	Closed	Open
»	COM4(2E8h)	Open	Open	Open	Closed

PARALLEL PORT 1 ADDRESS SELECTION
LPT		JP9/pins 1 & 2	JP9/pins 3 & 4	JP9/pins 5 & 6
»	LPT1(3BCh)	Closed	Open	Open
	LPT2(378h)	Open	Closed	Open
	LPT3(278h)	Open	Open	Closed

PARALLEL PORT 2 ADDRESS SELECTION
LPT		JP11/pins 1 & 2	JP11/pins 3 & 4	JP11/pins 5 & 6
	LPT1(3BCh)	Closed	Open	Open
»	LPT2(378h)	Open	Closed	Open
	LPT3(278h)	Open	Open	Closed

PARALLEL PORT 3 ADDRESS SELECTION
LPT		JP13/pins 1 & 2	JP13/pins 3 & 4	JP13/pins 5 & 6
	LPT1(3BCh)	Closed	Open	Open
	LPT2(378h)	Open	Closed	Open
»	LPT3(278h)	Open	Open	Closed

SERIAL PORT 1 INTERRUPT SELECTION
IRQ		JP2/A	JP2/B	JP2/C	JP2/D	JP2/E	JP2/F	JP2/G	JP2/H	JP2/I
	IRQ3	Closed	Open	Open	Open	Open	Open	Open	Open	Open
»	IRQ4	Open	Closed	Open	Open	Open	Open	Open	Open	Open
	IRQ5	Open	Open	Closed	Open	Open	Open	Open	Open	Open
	IRQ7	Open	Open	Open	Closed	Open	Open	Open	Open	Open
	IRQ9	Open	Open	Open	Open	Closed	Open	Open	Open	Open
	IRQ10	Open	Open	Open	Open	Open	Closed	Open	Open	Open
	IRQ11	Open	Open	Open	Open	Open	Open	Closed	Open	Open
	IRQ12	Open	Open	Open	Open	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Open	Open	Open	Open	Closed

SERIAL PORT 2 INTERRUPT SELECTION
IRQ		JP4/A	JP4/B	JP4/C	JP4/D	JP4/E	JP4/F	JP4/G	JP4/H	JP4/I
»	IRQ3	Closed	Open	Open	Open	Open	Open	Open	Open	Open
	IRQ4	Open	Closed	Open	Open	Open	Open	Open	Open	Open
	IRQ5	Open	Open	Closed	Open	Open	Open	Open	Open	Open
	IRQ7	Open	Open	Open	Closed	Open	Open	Open	Open	Open
	IRQ9	Open	Open	Open	Open	Closed	Open	Open	Open	Open
	IRQ10	Open	Open	Open	Open	Open	Closed	Open	Open	Open
	IRQ11	Open	Open	Open	Open	Open	Open	Closed	Open	Open
	IRQ12	Open	Open	Open	Open	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Open	Open	Open	Open	Closed

SERIAL PORT 3 INTERRUPT SELECTION
IRQ		JP6/A	JP6/B	JP6/C	JP6/D	JP6/E	JP6/F	JP6/G	JP6/H	JP6/I
	IRQ3	Closed	Open	Open	Open	Open	Open	Open	Open	Open
	IRQ4	Open	Closed	Open	Open	Open	Open	Open	Open	Open
	IRQ5	Open	Open	Closed	Open	Open	Open	Open	Open	Open
	IRQ7	Open	Open	Open	Closed	Open	Open	Open	Open	Open
	IRQ9	Open	Open	Open	Open	Closed	Open	Open	Open	Open
»	IRQ10	Open	Open	Open	Open	Open	Closed	Open	Open	Open
	IRQ11	Open	Open	Open	Open	Open	Open	Closed	Open	Open
	IRQ12	Open	Open	Open	Open	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Open	Open	Open	Open	Closed

SERIAL PORT 4 INTERRUPT SELECTION
IRQ		JP8/A	JP8/B	JP8/C	JP8/D	JP8/E	JP8/F	JP8/G	JP8/H	JP8/I
	IRQ3	Closed	Open	Open	Open	Open	Open	Open	Open	Open
	IRQ4	Open	Closed	Open	Open	Open	Open	Open	Open	Open
	IRQ5	Open	Open	Closed	Open	Open	Open	Open	Open	Open
	IRQ7	Open	Open	Open	Closed	Open	Open	Open	Open	Open
	IRQ9	Open	Open	Open	Open	Closed	Open	Open	Open	Open
	IRQ10	Open	Open	Open	Open	Open	Closed	Open	Open	Open
»	IRQ11	Open	Open	Open	Open	Open	Open	Closed	Open	Open
	IRQ12	Open	Open	Open	Open	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Open	Open	Open	Open	Closed

PARALLEL PORT 1 INTERRUPT SELECTION
IRQ		JP10/A	JP10/B	JP10/C	JP10/D	JP10/E	JP10/F	JP10/G	JP10/H	JP10/I
	IRQ3	Closed	Open	Open	Open	Open	Open	Open	Open	Open
	IRQ4	Open	Closed	Open	Open	Open	Open	Open	Open	Open
	IRQ5	Open	Open	Closed	Open	Open	Open	Open	Open	Open
»	IRQ7	Open	Open	Open	Closed	Open	Open	Open	Open	Open
	IRQ9	Open	Open	Open	Open	Closed	Open	Open	Open	Open
	IRQ10	Open	Open	Open	Open	Open	Closed	Open	Open	Open
	IRQ11	Open	Open	Open	Open	Open	Open	Closed	Open	Open
	IRQ12	Open	Open	Open	Open	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Open	Open	Open	Open	Closed

PARALLEL PORT 2 INTERRUPT SELECTION
IRQ		JP12/A	JP12/B	JP12/C	JP12/D	JP12/E	JP12/F	JP12/G	JP12/H	JP12/I
	IRQ3	Closed	Open	Open	Open	Open	Open	Open	Open	Open
	IRQ4	Open	Closed	Open	Open	Open	Open	Open	Open	Open
»	IRQ5	Open	Open	Closed	Open	Open	Open	Open	Open	Open
	IRQ7	Open	Open	Open	Closed	Open	Open	Open	Open	Open
	IRQ9	Open	Open	Open	Open	Closed	Open	Open	Open	Open
	IRQ10	Open	Open	Open	Open	Open	Closed	Open	Open	Open
	IRQ11	Open	Open	Open	Open	Open	Open	Closed	Open	Open
	IRQ12	Open	Open	Open	Open	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Open	Open	Open	Open	Closed

PARALLEL PORT 3 INTERRUPT SELECTION
IRQ		JP14/A	JP14/B	JP14/C	JP14/D	JP14/E	JP14/F	JP14/G	JP14/H	JP14/I
	IRQ3	Closed	Open	Open	Open	Open	Open	Open	Open	Open
	IRQ4	Open	Closed	Open	Open	Open	Open	Open	Open	Open
	IRQ5	Open	Open	Closed	Open	Open	Open	Open	Open	Open
	IRQ7	Open	Open	Open	Closed	Open	Open	Open	Open	Open
	IRQ9	Open	Open	Open	Open	Closed	Open	Open	Open	Open
	IRQ10	Open	Open	Open	Open	Open	Closed	Open	Open	Open
	IRQ11	Open	Open	Open	Open	Open	Open	Closed	Open	Open
	IRQ12	Open	Open	Open	Open	Open	Open	Open	Closed	Open
»	IRQ15	Open	Open	Open	Open	Open	Open	Open	Open	Closed
