16-BIT ISA INDUSTRIAL CONTROL CARD IO card Settings and Configuration

DECISION COMPUTER INTERNATIONAL CO., LTD.

16-BIT ISA INDUSTRIAL CONTROL CARD

Card Type
Data acquisition
Chipset
Unidentified
I/O Options
Digital I/O ports (4)
Data Bus
16-bit ISA

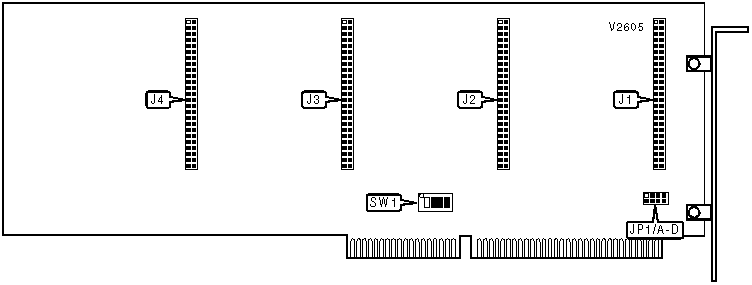

CONNECTIONS
Function
Label
Function
Label
Digital I/O port 1 (see pinout below)
J1
Digital I/O port 3 (see pinout below)
J3
Digital I/O port 2 (see pinout below)
J2
Digital I/O port 4 (see pinout below)
J4

J1-J4 PINOUT
Function
Pin
Function
Pin
+12V DC power
1
Channel 1 bit 0
21
+12V DC power
2
Channel 1 bit 1
22
Ground
3
Channel 1 bit 2
23
Ground
4
Channel 1 bit 3
24
Channel 0 bit 0
5
Channel 1 bit 4
25
Channel 0 bit 1
6
Channel 1 bit 5
26
Channel 0 bit 2
7
Channel 1 bit 6
27
Channel 0 bit 3
8
Channel 1 bit 7
28
Channel 0 bit 4
9
Channel 1 bit 8
29
Channel 0 bit 5
10
Channel 1 bit 9
30
Channel 0 bit 6
11
Channel 1 bit 10
31
Channel 0 bit 7
12
Channel 1 bit 11
32
Channel 0 bit 8
13
Channel 1 bit 12
33
Channel 0 bit 9
14
Channel 1 bit 13
34
Channel 0 bit 10
15
Channel 1 bit 14
35
Channel 0 bit 11
16
Channel 1 bit 15
36
Channel 0 bit 12
17
Ground
37
Channel 0 bit 13
18
-5V DC power
38
Channel 0 bit 14
19
/ENB1
39
Channel 0 bit 15
20
Ground
40

J1-J4 PINOUT (CON’T)
Function
Pin
Function
Pin
/ENB2
41
-12V DC power
46
Ground
42
+5V DC power
47
/ENB3
43
+5V DC power
48
Ground
44
+5V DC power
49
/ENB4
45
Ground
50
Note:J2 through J4 are wired identically to J1. J1 has the signals for channels 0 and 1. J2 through J4 have the signals for channels 2 through 7, respectively.

USER CONFIGURABLE SETTINGS
Setting
Label
Position
»
Factory configured - do not alter
SW1/4
Off

WAIT STATES
Setting
JP1/A
JP1/B
JP1/C
JP1/D
0
Closed
Open
Open
Open
1
Open
Closed
Open
Open
2
Open
Open
Closed
Open
3
Open
Open
Open
Closed

BASE I/O ADDRESS
Setting
SW1/1
SW1/2
SW1/3
»
180h
On
On
On

190h
On
On
Off

1A0h
On
Off
On

1B0h
On
Off
Off

1C0h
Off
On
On

1D0h
Off
On
Off

1E0h
Off
Off
On

1F0h
Off
Off
Off
