8X4MC IO card Settings and Configuration






COROLLARY, INC.

8X4MC

Card Type

Serial

Processor

80188

Processor Speed

10MHz

Chipset

8530

Maximum Onboard Memory

64KB SRAM

I/O Options

Serial ports (32)

Data Bus

MCA

Card Size

Full-height, full-length

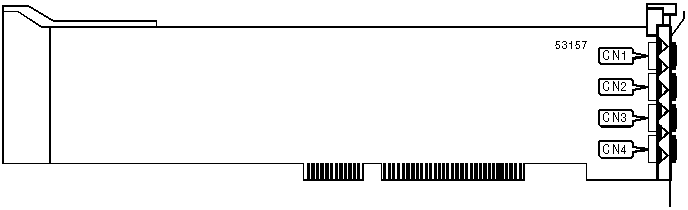

CONNECTIONS

Function

Label

Function

Label

Serial ports 1-8

CN1

Serial ports 17-24

CN3

Serial ports 9-16

CN2

Serial ports 25-32

CN4

Note:Standard RJ-11 serial ports are provided on external expansion boxes.

DIAGNOSTIC LED(S)

LED

Color

Status

Condition

LED

Red

On

Power is on

LED

Red

Blinking

Error has occurred

LED

Red

Off

Power is off

Note:The location of the LED is unidentified.
