CTC-2MB FLOPPY CONTROLLER IO card Settings and Configuration






CONNER PERIPHERALS, INC.

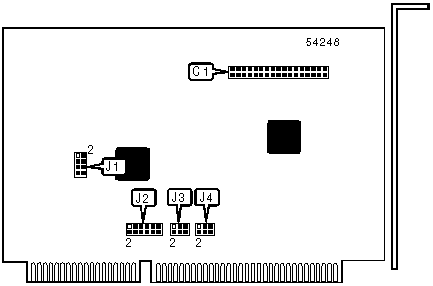

CTC-2MB FLOPPY CONTROLLER

Card Type

Floppy drive controller

Chip Set

Unidentified

Data Bus

16-bit ISA

CONNECTIONS

Function

Label

Floppy drive interface

C1

BASE I/O ADDRESS SELECTION

Setting

J1



3F0h

Pins 1 & 2 closed



3E0h

Pins 3 & 4 closed



370h

Pins 5 & 6 closed

360h

Pins 7 & 8 closed

INTERRUPT SELECTION

IRQ

J2



3

Pins 1 & 2 closed



4

Pins 3 & 4 closed



5

Pins 5 & 6 closed

6

Pins 7 & 8 closed



7

Pins 9 & 10 closed



9

Pins 11 & 12 closed

DMA CHANNEL SELECTION

Channel

J3

J4



1

Pins 1 & 2 closed

Pins 1 & 2 closed

2

Pins 3 & 4 closed

Pins 3 & 4 closed



3

Pins 5 & 6 closed

Pins 5 & 6 closed
