HOSTESS 550 RJ11 IO card Settings and Configuration

COMTROL CORPORATION

HOSTESS 550 RJ11

Card Type
Serial
Chipset
16554
I/O Options
Serial ports (4)
Data Bus
16-bit ISA
Card Size
Full height, three-quarters length

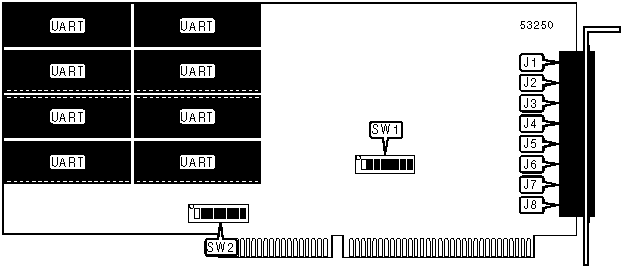

CONNECTIONS
Function
Label
Function
Label
Serial port 1
J1
Serial port 5
J5
Serial port 2
J2
Serial port 6
J6
Serial port 3
J3
Serial port 7
J7
Serial port 4
J4
Serial port 8
J8

USER CONFIGURABLE SETTINGS
Setting
Label
Position
»
Factory configured - do not alter
SW1/1
Off

Interrupt mask enabled
SW2/1
On

Interrupt mask disabled
SW2/1
Off

BASE I/O ADDRESS SELECTION
Setting
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
SW1/7
SW1/8

0000h
On
On
On
On
On
On
On

0040h
Off
On
On
On
On
On
On

0080h
On
Off
On
On
On
On
On

00C0h
Off
Off
On
On
On
On
On

0100h
On
On
Off
On
On
On
On
»
0280h
On
Off
On
Off
On
On
On

1EC0h
Off
Off
On
Off
Off
Off
Off

1F00h
On
On
Off
Off
Off
Off
Off

1F40h
Off
On
Off
Off
Off
Off
Off

1F80h
On
Off
Off
Off
Off
Off
Off

1FC0h
Off
Off
Off
Off
Off
Off
Off
Note: A total of 256 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/8 is the Most Significant Bit and switch SW1/2 is the Least Significant Bit. The switches have the following decimal values: SW1/8=4096, SW1/7=2048, SW1/6=1024, SW1/5=512, SW1/4=256, SW1/3=128, SW1/2=64. Turn off the switches and add the values of the switches that are off to obtain the correct memory address. (Off=1, On=0)

INTERRUPT SELECTION
Setting
SW2/2
SW2/3
SW2/4
SW2/5
SW2/6
SW2/7
SW2/8
2
On
Off
Off
Off
Off
Off
Off
3
Off
On
Off
Off
Off
Off
Off
4
Off
Off
On
Off
Off
Off
Off
5
Off
Off
Off
On
Off
Off
Off
7
Off
Off
Off
Off
On
Off
Off
10
Off
Off
Off
Off
Off
On
Off
11
Off
Off
Off
Off
Off
Off
On
