HOSTESS 186 - RJ11 IO card Settings and Configuration

COMTROL CORPORATION

HOSTESS 186 - RJ11

Category
Serial controller
Chipset Controller
Intel Corporation
I /O Options Supported
Serial ports (8)
Maximum Onboard Memory
N/A

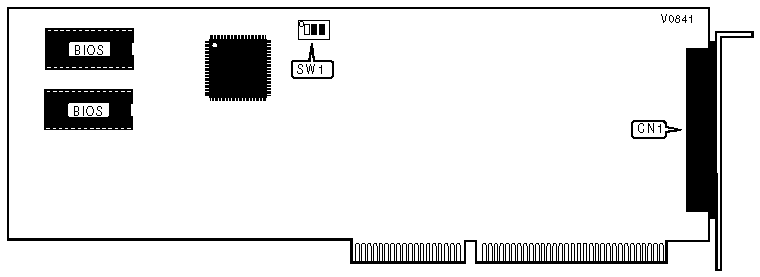

CONNECTIONS
Purpose
Location
Serial ports - RJ-11 (8)
CN1

I/O ADDRESS
Setting
SW1/1
SW1/2
SW1/3
»
218h
Off
Off
Off

21Ch
On
Off
Off

238h
Off
On
Off

23Ch
On
On
Off

318h
Off
Off
On

31Ch
On
Off
On

338h
Off
On
On

33Ch
On
On
On
