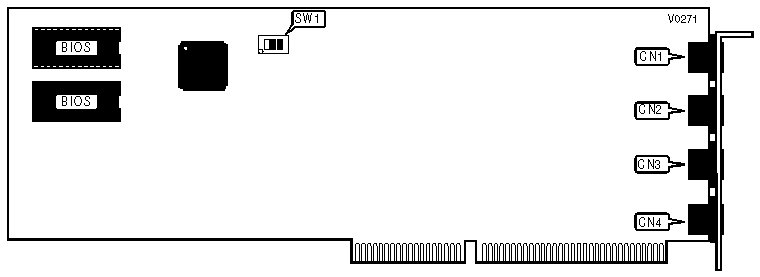

HOSTESS 186 RJ45 IO card Settings and Configuration






COMTROL CORPORATION

HOSTESS 186 RJ45

Card Type

Multi-user serial controller

Chipset/Controller

Intel 80186

I/O Options

Serial ports (4)

Maximum DRAM

N/A

CONNECTIONS

Purpose

Location

Purpose

Location

RJ45 connector 1

CN1

RJ45 connector 3

CN3

RJ45 connector 2

CN2

RJ45 connector 4

CN4

I/O ADDRESS SELECT

Address

SW1/1

SW1/2

SW1/3

218h

Off

Off

Off



21Ch

On

Off

Off



238h

Off

On

Off



23Ch

On

On

Off



318h

Off

Off

On



31Ch

On

Off

On



338h

Off

On

On



33Ch

On

On

On
