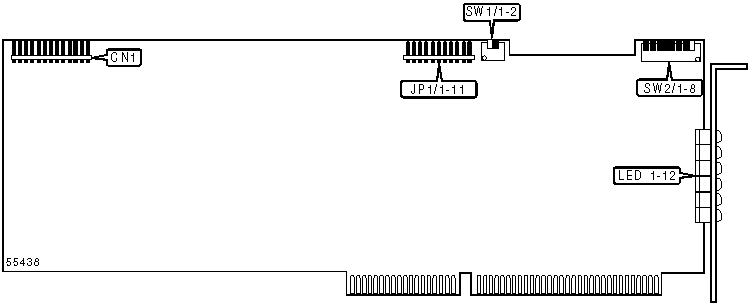

TR114+I12S IO card Settings and Configuration

BROOKTROUT TECHNOLOGY, INC.

TR114+I12S

Card Type
Digital I/O card
Maximum Onboard Memory
2MB
Data Bus
16-bit ISA

CONNECTIONS
Function
Label
SCbus connector
CN1

USER CONFIGURABLE SETTINGS
Function
Label
Position
Card is first or only card in system
SW2/1
On
Card is not first in a multiple card system
SW2/1
Off

BASE I/O ADDRESS SELECTION
Setting
SW2/2
SW2/3
SW2/4
SW2/5
SW2/6
SW2/7
SW2/8
100h
On
On
On
On
On
Off
On
108h
On
On
On
Off
On
Off
On
110h
On
On
On
On
Off
Off
On
118h
On
On
On
On
On
On
Off
120h
On
On
Off
On
On
On
Off
260h
On
On
Off
Off
On
On
Off
3D8h
Off
Off
Off
Off
On
On
Off
3E0h
Off
Off
Off
Off
Off
On
On
3E8h
Off
Off
Off
Off
Off
On
Off
3F0h
Off
Off
Off
Off
Off
Off
On
3F8h
Off
Off
Off
Off
Off
Off
Off
Note:
A total of 255 base address settings are available. The switches are a binary representation of the decimal memory addresses. SW1/8 is the Most Significant Bit and switch SW1/1 is the Least Significant Bit. The switches have the following decimal values: SW1/8=32768, SW1/7=16384, SW1/6=8192, SW1/5=4096, SW1/4=2048, SW1/3=1024, SW1/2=512, SW1/1=256. Turn off the switches and add the values of the switches to obtain the correct memory address. (Off=1, On=0)

INTERRUPT SELECTION
IRQ
JP1
3
Pins 1 & 2 closed
4
Pins 3 & 4 closed
5
Pins 5 & 6 closed
6
Pins 7 & 8 closed
7
Pins 9 & 10 closed
9
Pins 11 & 12 closed
10
Pins 13 & 14 closed
11
Pins 15 & 16 closed
12
Pins 17 & 18 closed
14
Pins 19 & 20 closed
15
Pins 21 & 22 closed

DIAGNOSTIC LED(S)
LED
Color
Status
Condition
LED1
Red
Blinking
Data is being transmitted on the channel 1
LED1
Red
Blinking (fast)
Channel 1 is off hook
LED2
Red
Blinking
Data is being transmitted on the channel 2
LED2
Red
Blinking (fast)
Channel 2 is off hook
LED3
Red
Blinking
Data is being transmitted on the channel 3
LED3
Red
Blinking (fast)
Channel 3 is off hook
LED4
Red
Blinking
Data is being transmitted on the channel 4
LED4
Red
Blinking (fast)
Channel 4 is off hook
LED5
Red
Blinking
Data is being transmitted on the channel 5
LED5
Red
Blinking (fast)
Channel 5 is off hook
LED6
Red
Blinking
Data is being transmitted on the channel 6
LED6
Red
Blinking (fast)
Channel 6 is off hook
LED7
Red
Blinking
Data is being transmitted on the channel 7
LED7
Red
Blinking (fast)
Channel 7 is off hook
LED8
Red
Blinking
Data is being transmitted on the channel 8
LED8
Red
Blinking (fast)
Channel 8 is off hook
LED9
Red
Blinking
Data is being transmitted on the channel 9
LED9
Red
Blinking (fast)
Channel 9 is off hook
LED10
Red
Blinking
Data is being transmitted on the channel 10
LED10
Red
Blinking (fast)
Channel 10 is off hook
LED11
Red
Blinking
Data is being transmitted on the channel 11
LED11
Red
Blinking (fast)
Channel 11 is off hook
LED12
Red
Blinking
Data is being transmitted on the channel 12
LED12
Red
Blinking (fast)
Channel 12 is off hook

MVIP CLOCK TERMINATION
Setting
SW1/1
SW1/2
Terminated
On
On
Not terminated
Off
Off
