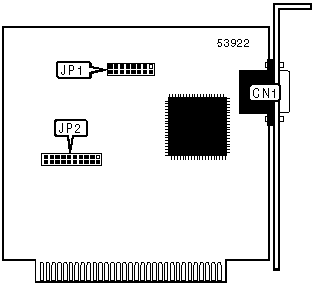

AT ONE PORT RS232 IO card Settings and Configuration






BRAIN BOXES

AT ONE PORT RS232

Card Type

Serial card

Chip Set

Unidentified

Data Bus

8-bit ISA

CONNECTIONS

Function

Label

9-pin serial port

CN1

SERIAL PORT ADDRESS SELECTION

COM port

Address

IRQ

JP1



COM1

3F8h

IRQ4

Open

COM2

2F8h

IRQ3

Pins 3 & 4 closed



COM3

3E8h

IRQ3

Pins 5 & 6 closed



COM4

2E8h

IRQ3

Pins 7 & 8 closed



COM5

1A0h

IRQ3

Pins 9 & 10 closed



COM6

1A8h

IRQ3

Pins 11 & 12 closed



COM7

1B0h

IRQ3

Pins 13 & 14 closed



COM8

1B8h

IRQ3

Pins 15 & 16 closed

SERIAL PORT IRQ SELECTION

IRQ

JP2



IRQ2

Pins 11 & 12 closed

IRQ3

Pins 9 & 10 closed



IRQ4

Pins 7 & 8 closed



IRQ5

Pins 5 & 6 closed



IRQ6

Pins 3 & 4 closed



IRQ7

Pins 1 & 2 closed



IRQ10

Pins 13 & 14 closed



IRQ11

Pins 15 & 16 closed



IRQ12

Pins 17 & 18 closed



IRQ14

Pins 19 & 20 closed
