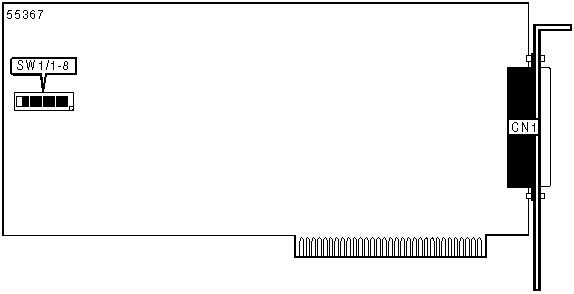

RELAY 16 IO card Settings and Configuration

BRAIN BOXES

RELAY 16

Card Type
Digital I/O card
I/O Options
37-pin port
Data Bus
8-bit ISA

CONNECTIONS
Function
Label
37-pin port
CN1

BASE I/O ADDRESS SELECTION
Setting
SW1/1
SW1/2
SW1/3
SW1/4
SW1/5
SW1/6
SW1/7
SW1/8

276h
Off
Off
On
Off
Off
Off
On
On

278h
On
On
Off
Off
Off
Off
On
On

27Ah
Off
On
Off
Off
Off
Off
On
On

27Ch
On
Off
Off
Off
Off
Off
On
On

27Eh
Off
Off
Off
Off
Off
Off
On
On
»
280h
On
On
On
On
On
On
Off
On

282h
Off
On
On
On
On
On
Off
On

284h
On
Off
On
On
On
On
Off
On

286h
Off
Off
On
On
On
On
Off
On

288h
On
On
Off
On
On
On
Off
On

28Ah
Off
On
Off
On
On
On
Off
On
