PA-MD12, PA-MD16 IO card Settings and Configuration
AQUTEK CORPORATION
PA-MD12, PA-MD16
Card Type | Data Acquisition |
Chip Set | None |
Maximum Onboard Memory | Unidentified |
I/O Options | Analog/digital I/O |
Data Bus | 16-bit ISA |
Card Size | Three-quarter length |

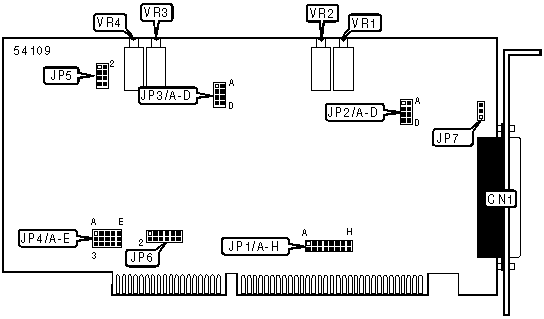

CONNECTIONS | |||
Function | Label | Function | Label |
37-pin analog/digital signals connector | CN1 | D/A 1 converter range selector | VR2 |
External clock input | JP7 | D/A 2 converter offset selector | VR3 |
D/A 1 converter offset selector | VR1 | D/A 2 converter range selector | VR4 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
» | Factory configured - do not alter | JP5 | Pins 1 & 2, 3 & 4 closed |
DMA CHANNEL SELECTION | |
Channel | JP6 |
0 | Pins 9 & 10, 11 & 12 closed |
1 | Pins 5 & 6, 7 & 8 closed |
3 | Pins 1 & 2, 3 & 4 closed |
D/A 1 OUTPUT VOLTAGE RANGE SELECTION | |||||
Voltage | JP2/A | JP2/B | JP2/C | JP2/D | |
» | 0V to 5V | Open | Open | Closed | Open |
| 0V to 10V | Open | Closed | Open | Open |
| -5V to 5V | Closed | Open | Closed | Open |
| -10V to 10V | Closed | Closed | Open | Open |
D/A 2 OUTPUT VOLTAGE RANGE SELECTION | |||||
Voltage | JP3/A | JP3/B | JP3/C | JP3/D | |
» | 0V to 5V | Open | Open | Closed | Open |
| 0V to 10V | Open | Closed | Open | Open |
| -5V to 5V | Closed | Open | Closed | Open |
| -10V to 10V | Closed | Closed | Open | Open |
BASE I/O ADDRESS SELECTION | |||||||||
Setting | JP1/A | JP1/B | JP1/C | JP1/D | JP1/E | JP1/F | JP1/G | JP1/H | |
| 000h | Closed | Closed | Closed | Closed | Closed | Closed | Closed | Closed |
| 010h | Closed | Closed | Closed | Closed | Closed | Closed | Closed | Open |
| 020h | Closed | Closed | Closed | Closed | Closed | Closed | Open | Closed |
| 030h | Closed | Closed | Closed | Closed | Closed | Closed | Open | Open |
| 040h | Closed | Closed | Closed | Closed | Closed | Open | Closed | Closed |
» | 2E0h | Closed | Closed | Open | Closed | Open | Open | Open | Closed |
| FB0h | Open | Open | Open | Open | Open | Closed | Open | Open |
| FC0h | Open | Open | Open | Open | Open | Open | Closed | Closed |
| FD0h | Open | Open | Open | Open | Open | Open | Closed | Open |
| FE0h | Open | Open | Open | Open | Open | Open | Open | Closed |
| FF0h | Open | Open | Open | Open | Open | Open | Open | Open |
Note: A total of 256 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. JP1/A is the Most Significant Bit and switch JP1/H is the Least Significant Bit. The switches have the following decimal values: JP4/A=2048, JP1/B=1024, JP1/C=512, JP1/D=256, JP1/E=128, JP1/F=64, JP1/G=32, JP1/H=16. Turn off the switches and add the values of the switches to obtain the correct memory address. (Open=1, Closed=0) | |||||||||
IRQ INTERRUPT SELECTION | ||||||
IRQ | JP4/A | JP4/B | JP4/C | JP4/D | JP4/E | |
| IRQ2 | Open | Open | Open | Open | Pins 1 & 2 |
| IRQ3 | Open | Open | Open | Pins 1 & 2 | Open |
| IRQ4 | Open | Open | Pins 1 & 2 | Open | Open |
» | IRQ5 | Open | Pins 1 & 2 | Open | Open | Open |
| IRQ7 | Pins 1 & 2 | Open | Open | Open | Open |
| IRQ10 | Open | Open | Open | Open | Pins 2& 3 |
| IRQ11 | Open | Open | Open | Pins 2& 3 | Open |
| IRQ12 | Open | Open | Pins 2& 3 | Open | Open |
| IRQ14 | Open | Pins 2 & 3 | Open | Open | Open |
| IRQ15 | Pins 2 & 3 | Open | Open | Open | Open |
| Disabled | Open | Open | Open | Open | Open |
Note: Pins designated are in the closed position. IRQ10, IRQ11, IRQ12, IRQ14 & IRQ15 are for AT compatible buses; PC buses will not support them. | ||||||
