TELEVIEWER, IO card Settings and Configuration






ANTEC, INC.

TELEVIEWER,

TELEVIEWER PLUS

Card Type

Tuner card, Frame capture, Video card (Televiewer Plus)

Chip Set

Unidentified

Maximum Onboard Memory

Unidentified

I/O Options

DB-9 connector (2), speaker, TV antenna connector

Data Bus

16-bit ISA

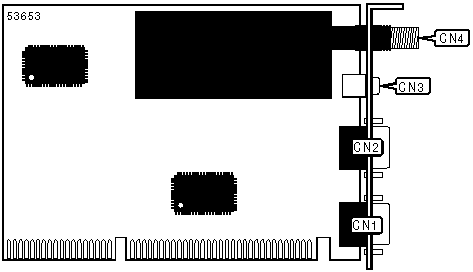

CONNECTIONS

Function

Label

Function

Label

VGA via DB-9 connector

CN1

Speaker connector

CN3

Monitor via DB-9 connector

CN2

TV antenna connector

CN4

MISCELLANEOUS TECHNICAL NOTES

TeleViewer Plus allows a scalable screen, frame capture and television display within Windows. TeleViewer does not.
