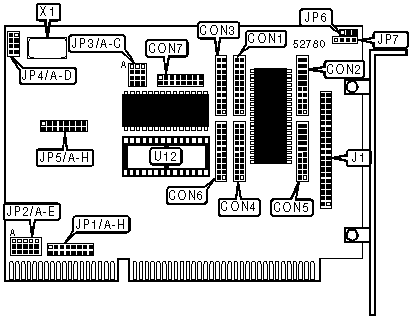

PI-IO48A IO card Settings and Configuration

Card Type	Multi-I/O
Chipset	Unidentified
Maximum Onboard Memory	32KB SRAM/NVSRAM/EEPROM or 64KB EPROM
I/O Options	Digital I/O (6), control interface, timer I/O
Data Bus	8/16 bit ISA

CONNECTIONS
Function	Label	Function	Label
Digital XDI I/O module connector 1	CON1	Digital XDI I/O module connector 5	CON5
Digital XDI I/O module connector 2	CON2	Digital XDI I/O module connector 6	CON6
Digital XDI I/O module connector 3	CON3	Timer I/O connector (see pinout below)	CON7
Digital XDI I/O module connector 4	CON4	Digital XCI control connector	J1

CON7 PINOUT
Function	Pin	Function	Pin
Clock 2 signal in	1	Clock 0 signal in	9
Ground	2	Ground	10
Gate 2 signal out	3	Gate 0 signal out	11
Clock 2 signal out	4	Clock 0 signal out	12
Clock 1 signal in	5	Not used	13
Ground	6	Not used	14
Gate 1 signal out	7	Not used	15
Clock 1 signal out	8	Not used	16

USER CONFIGURABLE SETTINGS
Setting	Label	Position
U12 memory enabled	JP4/A	Open
U12 memory disabled	JP4/A	Closed

BASE I/O ADDRESS SELECTION
Setting		JP1/A	JP1/B	JP1/C	JP1/D	JP1/E	JP1/F	JP1/G	JP1/H
	000h	Closed	Closed	Closed	Closed	Closed	Closed	Closed	Closed
	010h	Closed	Closed	Closed	Closed	Closed	Closed	Closed	Open
	020h	Closed	Closed	Closed	Closed	Closed	Closed	Open	Closed
	030h	Closed	Closed	Closed	Closed	Closed	Closed	Open	Open
	040h	Closed	Closed	Closed	Closed	Closed	Open	Closed	Closed
»	2E0h	Closed	Closed	Open	Closed	Open	Open	Open	Closed
	FB0h	Open	Open	Open	Open	Open	Closed	Open	Open
	FC0h	Open	Open	Open	Open	Open	Open	Closed	Closed
	FD0h	Open	Open	Open	Open	Open	Open	Closed	Open
	FE0h	Open	Open	Open	Open	Open	Open	Open	Closed
	FF0h	Open	Open	Open	Open	Open	Open	Open	Open
Note: A total of 256 base address settings are available. The jumpers are a binary representation of the decimal memory addresses. JP1/A is the Most Significant Bit and jumper JP1/H is the Least Significant Bit. The jumpers have the following decimal values: JP1/A=2048, JP1/B=1024, JP1/C=512, JP1/D=256, JP1/E=128, JP1/F=64, JP1/G=32, JP1/H=16. Open the jumpers and add the values of the jumpers that are open to obtain the correct memory address. (Open=1, Closed=0)

INTERRUPT SOURCE SELECTION
Setting	JP6	JP7
From host computer	Pins 1 & 2 closed	Open
From XCI modules	Pins 2 & 3 closed	Pins 2 & 3 closed
Note:When the interrupt source is set to the XCI modules, jumper JP2 has no effect.

INTERRUPT SELECTION
Setting	JP2/A	JP2/B	JP2/C	JP2/D	JP2/E
IR/FONT>	Open	Open	Open	Open	Pins 2 & 3
IRQ3	Open	Open	Open	Pins 2 & 3	Open
IRQ4	Open	Open	Pins 2 & 3	Open	Open
IRQ5	Open	Pins 2 & 3	Open	Open	Open
IRQ7	Pins 2 & 3	Open	Open	Open	Open
IRQ10	Open	Open	Open	Open	Pins 1 & 2
IRQ11	Open	Open	Open	Pins 1 & 2	Open
IRQ12	Open	Open	Pins 1 & 2	Open	Open
IRQ14	Open	Pins 1 & 2	Open	Open	Open
IRQ15	Pins 1 & 2	Open	Open	Open	Open
Disabled	Open	Open	Open	Open	Open
Note:Pins designated are in the closed position.

CLOCK 0 INPUT SOURCE
Setting	JP3/C
Pin 5 of CON7	Open
Internal 3.58MHz clock	Pins 3 & 4 closed
X1 crystal	Pins 1 & 2 closed

CLOCK 1 INPUT SOURCE
Setting	JP3/B
Pin 3 of CON7	Open
Internal 3.58MHz clock	Pins 3 & 4 closed
X1 crystal	Pins 1 & 2 closed

CLOCK 2 INPUT SOURCE
Setting	JP3/A
Pin 1 of CON7	Open
Internal 3.58MHz clock	Pins 3 & 4 closed
X1 crystal	Pins 1 & 2 closed

MEMORY CONFIGURATION
Size	U12
8KB EPROM	(1) 2764
8KB EEPROM	(1) 2864
8KB SRAM	(1) 6264
8KB NVSRAM	(1) 4010
16KB EPROM	(1) 27128
32KB EPROM	(1) 27256
32KB EEPROM	(1) 28256
32KB SRAM	(1) 62256
32KB NVSRAM	(1) 4011
64KB EPROM	(1) 27512

MEMORY JUMPER CONFIGURATION
Size	JP5/A	JP5/B	JP5/C
8KB EPROM	Closed	Closed	Open
8KB EEPROM	Closed	Closed	Closed
8KB SRAM	Closed	Closed	Closed
8KB NVSRAM	Closed	Closed	Closed
16KB EPROM	Open	Closed	Open
32KB EPROM	Closed	Open	Open
32KB EEPROM	Closed	Open	Closed
32KB SRAM	Closed	Open	Closed
32KB NVSRAM	Closed	Open	Closed
64KB EPROM	Open	Open	Open

SHARED MEMORY ADDRESS SELECTION
Setting	JP4/B	JP4/C	JP4/D	JP5/D	JP5/E	JP5/F
C0000h	Closed	Open	Open	Closed	Closed	Closed
C2000h	Closed	Open	Open	Open	Closed	Closed
C4000h	Closed	Open	Open	Closed	Open	Closed
C6000h	Closed	Open	Open	Open	Open	Closed
C8000h	Closed	Open	Open	Closed	Closed	Open
CA000h	Closed	Open	Open	Open	Closed	Open
CC000h	Closed	Open	Open	Closed	Open	Open
CE000h	Closed	Open	Open	Open	Open	Open
D0000h	Open	Closed	Open	Closed	Closed	Closed
D2000h	Open	Closed	Open	Open	Closed	Closed
D4000h	Open	Closed	Open	Closed	Open	Closed
D6000h	Open	Closed	Open	Open	Open	Closed
D8000h	Open	Closed	Open	Closed	Closed	Open
DA000h	Open	Closed	Open	Open	Closed	Open
DC000h	Open	Closed	Open	Closed	Open	Open
DE000h	Open	Closed	Open	Open	Open	Open
E0000h	Open	Open	Closed	Closed	Closed	Closed
E2000h	Open	Open	Closed	Open	Closed	Closed
E4000h	Open	Open	Closed	Closed	Open	Closed
E6000h	Open	Open	Closed	Open	Open	Closed
E8000h	Open	Open	Closed	Closed	Closed	Open
EA000h	Open	Open	Closed	Open	Closed	Open
EC000h	Open	Open	Closed	Closed	Open	Open
EE000h	Open	Open	Closed	Open	Open	Open

MEMORY WRITE PROTECT CONFIGURATION
Setting	JP5/G	JP5/H
Enabled	Open	Open
Disabled	Open	Closed
Controlled by PC27 signal of 82c255 chip	Closed	Open
