SUN-5230 Hard Disk/Floppy Controller Settings and Configuration
UNIDENTIFIED
SUN-5230
Data bus: 8-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Up to seven SCSI devices
Floppy drives supported: None

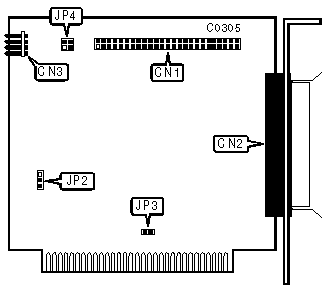

CONNECTIONS | |
50-pin SCSI connector-internal | CN1 |
25-pin SCSI connector-external | CN2 |
4-pin connector-drive active LED | CN3 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | Interrupt Request is IRQ3 | JP2 | pins 1 & 2 closed |
Interrupt Request is IRQ5 | JP2 | pins 2 & 3 closed | |
| » | Zero Wait State enabled | JP3 | open |
Zero Wait State disabled | JP3 | closed | |
BIOS ADDRESS | |||
Address | JP4 | JP4A | |
| » | CA00h | open | open |
C800h | closed | open | |
CE00h | open | open | |
DE00h | closed | closed | |
MISCELLANEOUS TECHNICAL NOTES |
This controller has no on-board software. |
