AT BUS/FLOPPY DISK CONTROLLER Hard Disk/Floppy Controller Settings and Configuration






UNIDENTIFIED

AT BUS/FLOPPY DISK CONTROLLER

Data bus:

16-bit ISA

Size:

Three/quarter-length, full-height card

Hard drive supported:

Two IDE (AT) interface drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

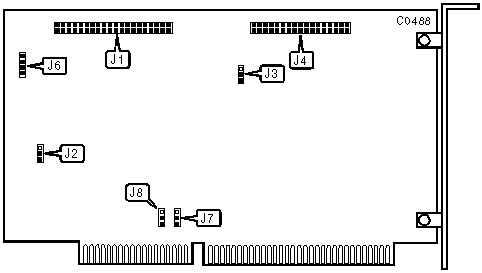

CONNECTIONS

Function

Location

40-pin IDE (AT) interface connector

J1

34-pin control cable connector - floppy drive

J4

4-pin connector - drive active LED

J6

USER CONFIGURABLE SETTINGS

Function

Location

Setting

IRQ14 enabled

J2/pins 2 & 3

closed



XIRQ14 enabled

J2/pins 1 & 2

closed

Factory configured - do not alter

J3

N/A

Factory setting

J7/pins 2 & 3

closed



Two speed spindle type drive

J7/pins 1 & 2

closed

Hard drive enabled

J8/pins 1 & 2

closed



Hard drive disabled

J8/pins 2 & 3

closed
