SMART A2 Hard Disk/Floppy Controller Settings and Configuration






UNIDENTIFIED

SMART A2

Data bus:

16-bit ISA

Size:

Half-length, full-height card

Hard drive supported:

Two IDE(AT) drives

Floppy drives supported:

Two 360KB, 720KB, 1.2MB, or 1.44MB drives

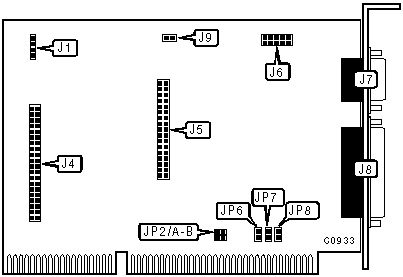

CONNECTIONS

Function

Location

4-pin connector - drive active LED

J1

40-pin primary IDE(AT) connector

J4

34-pin cable connector - floppy drive

J5

10-pin serial port 2 - internal

J6

9-pin serial port 1 - external

J7

25-pin parallel port - external

J8

USER CONFIGURABLE SETTINGS

Function

Location

Setting

Floppy drive address select 3F0h-3F7h

J9

open

Floppy drive address select 370h-377h

J9

closed

IDE(AT) interface enabled

JP2/A

open

IDE(AT) interface disabled

JP2/A

closed

Floppy drive interface enabled

JP2/B

open

Floppy drive interface disabled

JP2/B

closed

Serial port 1 enabled

JP6

closed

Serial port 1 disabled

JP6

open

Serial port 2 enabled

JP7

closed

Serial port 2 disabled

JP7

open

Parallel port LPT1 enable

JP8

closed

Parallel port LPT1 disable

JP8

open
