IDE PLUS-V3 Hard Disk/Floppy Controller Settings and Configuration
UNIDENTIFIED
IDE PLUS-V3
Data Bus | 16-bit ISA |
Card Size | Half-length, full-height card |
Hard Drives supported | Two IDE (AT) drives |
Floppy drives supported | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |

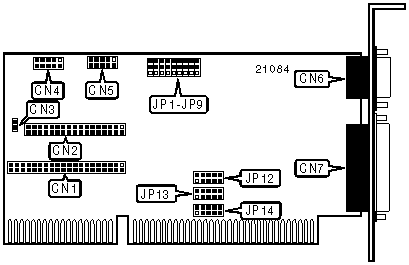

CONNECTIONS | |||
Function | Location | Function | Location |
40-pin IDE (AT) Interface connector-internal | CN1 | 9-pin serial port 1 - external | CN5 |
34-pin control cable connector - floppy drive | CN2 | 15-pin game port - external | CN6 |
2-pin connector - drive active LED | CN3 | 25-pin parallel port - external | CN7 |
10-pin serial port 2 - internal | CN4 | ||
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | Parallel port address is 378-37Fh (LPT1) | JP1 | Pins 1 & 2 closed |
Parallel port address is 278-27Fh (LPT2) | JP1 | Pins 2 & 3 closed | |
| » | Serial port 1 enabled | JP2 | Pins 1 & 2 closed |
Serial port 1 disabled | JP2 | Pins 2 & 3 closed | |
| » | Floppy drive controller enabled | JP3 | Pins 1 & 2 closed |
Floppy drive controller disabled | JP3 | Pins 2 & 3 closed | |
| » | IDE(AT) interface enabled | JP4 | Pins 1 & 2 closed |
IDE(AT) interface disabled | JP4 | Pins 2 & 3 closed | |
| » | Serial port 2 address is 2F8-2FFh | JP5 | Pins 1 & 2 closed |
Serial port 2 address is 2E8-2EFh | JP5 | Pins 2 & 3 closed | |
| » | Serial port 1 address is 3F8-3FFh | JP6 | Pins 1 & 2 closed |
Serial port 1 address is 3E8-3EFh | JP6 | Pins 2 & 3 closed | |
| » | Serial port 2 enabled | JP7 | Pins 1 & 2 closed |
Serial port 2 disabled | JP7 | Pins 2 & 3 closed | |
| » | Parallel port enabled | JP8 | Pins 1 & 2 closed |
Parallel port disabled | JP8 | Pins 2 & 3 closed | |
| » | Game port enabled | JP9 | Pins 2 & 3 closed |
Game port disabled | JP9 | Pins 1 & 2 closed | |
SERIAL PORT 1 INTERRUPT SELECTION | ||||||
IRQ | JP12/ pins 1 & 2 | JP12/ pins 3 & 4 | JP12/ pins 5 & 6 | JP12/ pins 7 & 8 | JP12/ pins 9 & 10 | |
IRQ3 | Closed | Open | Open | Open | Open | |
| » | IRQ4 | Open | Closed | Open | Open | Open |
IRQ5 | Open | Open | Closed | Open | Open | |
IRQ7 | Open | Open | Open | Closed | Open | |
IRQ9 | Open | Open | Open | Open | Closed | |
SERIAL PORT 2 INTERRUPT SELECTION | ||||||
IRQ | JP13/ pins 1 & 2 | JP13/ pins 3 & 4 | JP13/ pins 5 & 6 | JP13/ pins 7 & 8 | JP13/ pins 9 & 10 | |
| » | IRQ3 | Closed | Open | Open | Open | Open |
IRQ4 | Open | Closed | Open | Open | Open | |
IRQ5 | Open | Open | Closed | Open | Open | |
IRQ7 | Open | Open | Open | Closed | Open | |
IRQ9 | Open | Open | Open | Open | Closed | |
PARALLEL PORT INTERRUPT SELECTION | ||||||
IRQ | JP14/ pins 1 & 2 | JP14/ pins 3 & 4 | JP14/ pins 5 & 6 | JP14/ pins 7 & 8 | JP14/ pins 9 & 10 | |
IRQ3 | Closed | Open | Open | Open | Open | |
IRQ4 | Open | Closed | Open | Open | Open | |
IRQ5 | Open | Open | Closed | Open | Open | |
| » | IRQ7 | Open | Open | Open | Closed | Open |
IRQ9 | Open | Open | Open | Open | Closed | |
