V-606 SUPER I/O, W-606 SUPER I/O CARD Hard Disk/Floppy Controller Settings and Configuration

Chipset	Winbond
Data Bus	16-bit ISA
Card Size	Half height, half length
Hard Drives Supported	Two IDE(AT) devices
Floppy Drives Supported	Unidentified

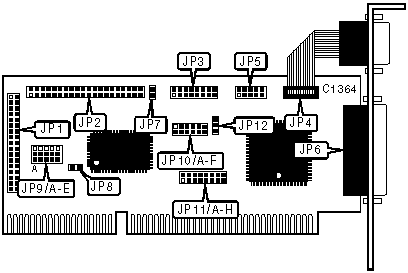

CONNECTIONS
Function	Label	Function	Label
34-pin cable connector - floppy drive	JP1	10-pin serial port 2 - internal	JP5
40-pin IDE(AT) connector	JP2	25-pin parallel port - external	JP6
16-pin game port	JP3	2-pin drive active LED	JP7
9-pin serial port 1 - external	JP4

USER CONFIGURABLE SETTINGS
Setting		Label	Position
»	Parallel port is unidirectional	JP8	Closed
	Parallel port is bidirectional	JP8	Open
»	Floppy drive order is normal (A:, B:)	JP9/A	Pins 2 & 3 closed
	Floppy drive order is reversed (B:, A:)	JP9/A	Pins 1 & 2 closed
»	Floppy address is 3F0h	JP9/B	Pins 1 & 2 closed
	Floppy address is 370h	JP9/B	Pins 2 & 3 closed
»	IDE(AT) interface enabled	JP9/C	Pins 2 & 3 closed
	IDE(AT) interface disabled	JP9/C	Pins 1 & 2 closed
»	IDE(AT) address is 3F6h	JP9/D	Pins 1 & 2 closed
	IDE(AT) address is 376h	JP9/D	Pins 2 & 3 closed
»	Floppy interface enabled	JP9/E	Pins 2 & 3 closed
	Floppy interface disabled	JP9/E	Pins 1 & 2 closed
»	Game port enabled	JP12	Pins 1 & 2 closed
	Game port disabled	JP12	Pins 2 & 3 closed

SERIAL PORT 1 ADDRESS SELECTION
Setting		JP10/A	JP10/B
»	3F8h (COM1:)	Pins 2 & 3 closed	Pins 1 & 2 closed
	3E8h (COM3:)	Pins 1 & 2 closed	Pins 2 & 3 closed
	2E8h (COM4:)	Pins 2 & 3 closed	Pins 2 & 3 closed
	Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed

SERIAL PORT 2 ADDRESS SELECTION
Setting		JP10/C	JP10/D
»	2F8h (COM2:)	Pins 2 & 3 closed	Pins 1 & 2 closed
	3E8h (COM3:)	Pins 2 & 3 closed	Pins 2 & 3 closed
	2E8h (COM4:)	Pins 1 & 2 closed	Pins 2 & 3 closed
	Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed

PARALLEL PORT ADDRESS SELECTION
Setting		JP10/E	JP10/F
»	378h	Pins 1 & 2 closed	Pins 2 & 3 closed
	278h	Pins 2 & 3 closed	Pins 1 & 2 closed
	3BCh	Pins 2 & 3 closed	Pins 2 & 3 closed
	Disabled	Pins 1 & 2 closed	Pins 1 & 2 closed

SERIAL PORT 1 INTERRUPT SELECTION
Setting		JP11/A	JP11/B	JP11/C
	IRQ3	Open	Closed	Open
»	IRQ4	Closed	Open	Open
	IRQ5	Open	Open	Closed

SERIAL PORT 2 INTERRUPT SELECTION
Setting		JP11/D	JP11/E	JP11/F
»	IRQ3	Closed	Open	Open
	IRQ4	Open	Closed	Open
	IRQ5	Open	Open	Closed

PARALLEL PORT INTERRUPT SELECTION
Setting		JP11/G	JP11/H
	IRQ5	Open	Closed
»	IRQ7	Closed	Open
