FIDC CARD (VER. 2) Hard Disk/Floppy Controller Settings and Configuration






UNIDENTIFIED

FIDC CARD (VER. 2)

Data Bus

16-bit ISA

Card Size

Full height, half length

Hard Drives Supported

Two IDE(AT) devices

Floppy Drives Supported

Unidentified

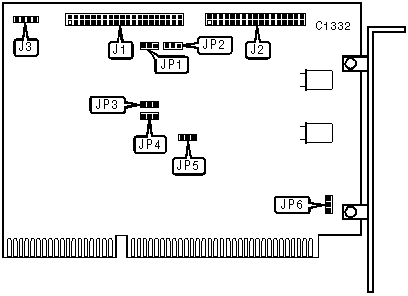

CONNECTIONS

Function

Label

Function

Label

40-pin IDE(AT) connector

J1

4-pin drive active LED

J3

34-pin cable connector - floppy drive

J2



USER CONFIGURABLE SETTINGS

Setting

Label

Position

Factory configured - do not alter

JP1

Unidentified

Factory configured - do not alter

JP2

Unidentified

IDE address is 1F0h

JP3

Pins 2 & 3 closed



IDE address is 170h

JP3

Pins 1 & 2 closed

Floppy address is 3F0h

JP4

Pins 2 & 3 closed



Floppy address is 370h

JP4

Pins 1 & 2 closed

IRQ14 not buffered

JP5

Pins 1 & 2 closed



IRQ14 buffered

JP5

Pins 2 & 3 closed

Floppy drive speed is 360rpm

JP6

Pins 2 & 3 closed



Floppy drive speed is 300rpm

JP6

Pins 1 & 2 closed
