BFIG-100W Hard Disk/Floppy Controller Settings and Configuration






UNIDENTIFIED

BFIG-100W

Data bus: 16-bit, ISA

Size: Half-length, full-height card

Hard drives supported: Two IDE(AT) Interface drives

Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB drives

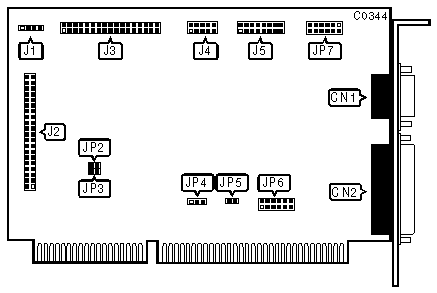

CONNECTIONS

Function

Location

4-pin connector - Drive active LED

J1

40-pin IDE(AT) Interface connector

J2

34-pin control cable connector - floppy drive

J3

9-pin serial port 2 (COM2) - internal

J4

15-pin game port - external

J5

9-pin serial port 1 (COM1) - external

CN1

25-pin parallel port - external

CN2

SERIAL PORT 1 CONFIGURATION

Select

JP6/jumper 1

JP6/jumper 3



Disabled

open

open

COM1 (3F8-3FFh)

closed

open



COM3 (3E8-3EFh)

open

closed



COM4 (2E8-2EFh)

closed

closed

USER CONFIGURABLE SETTINGS

Function

Location

Setting

Floppy drive enabled

JP2

open



Floppy drive disabled

JP2

closed

Hard drive enabled

JP3

open



Hard drive disabled

JP3

closed

Parallel port interrupt is IRQ7

JP4

pins 2 & 3 closed



Parallel port interrupt is IRQ5

JP4

pins 1 & 2 closed

Game port enabled

JP5

closed



Game port disabled

JP5

open

SERIAL PORT 2 CONFIGURATION

Select

JP6/jumper 2

JP6/jumper 4



Disabled

open

open

COM2 (2F8-2FFh)

closed

open



COM4 (2E8-2EFh)

open

closed



COM3 (3E8-3EFh)

closed

closed

PARALLEL PORTCONFIGURATION

Select

JP6/jumper 5

JP6/jumper 6



Disabled

open

open

LPT2 (378-37Fh)

closed

open



LPT3 (278-27Fh)

open

closed

SERIAL PORT 1 INTERRUPT REQUEST

Select

JP7/jumper 1

JP7/jumper 2

JP7/jumper 3

IRQ4

closed

open

open



IRQ5

open

closed

open



IRQ9

open

open

closed

SERIAL PORT 2 INTERRUPT REQUEST

Select

JP7/jumper 4

JP7/jumper 5

JP7/jumper 6

IRQ3

closed

open

open



IRQ9

open

closed

open



IRQ5

open

open

closed
