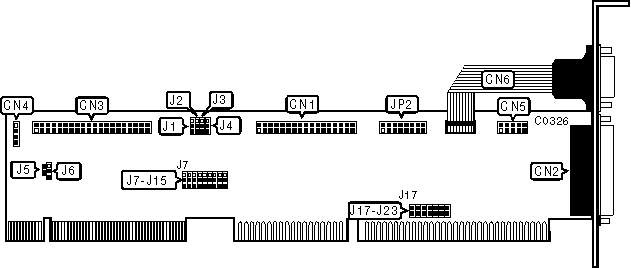

TYAN COMPUTER CORPORATION
S1345, VL400GW-VI
Data bus: | 32-bit, VL-Bus |
Size: | Three-quarter length, half-height card |
Hard drive supported: | Two IDE (AT) Interface drives |
Floppy drives supported: | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |

CONNECTIONS | |
Function | Location |
34-pin control cable connector - floppy drive | CN1 |
25-pin parallel port (LPT1/2) - external | CN2 |
40-pin IDE(AT) Interface connector | CN3 |
4-pin connector - drive active LED | CN4 |
10-pin serial port 2 (COM2/4) - internal | CN5 |
10-pin serial port 1 (COM1/3) - external | CN6 |
15-pin game port - internal | JP2 |
WAIT STATE | ||||
Speed | J2 | J3 | J4 | |
16MHz VL Bus Clock | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | |
20 or 25MHz VL Bus Clock | Pins 1 & 2 closed | Pins 1 & 2 closed | Pins 2 & 3 closed | |
25 or 33MHz VL Bus Clock | Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 1 & 2 closed | |
33MHz VL Bus Clock | Pins 1 & 2 closed | Pins 2 & 3 closed | Pins 2 & 3 closed | |
40MHz VL Bus Clock | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 1 & 2 closed | |
50MHz VL Bus Clock | Pins 2 & 3 closed | Pins 1 & 2 closed | Pins 2 & 3 closed | |
50MHz VL Bus Clock | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 1 & 2 closed | |
| » | 50MHz VL Bus Clock | Pins 2 & 3 closed | Pins 2 & 3 closed | Pins 2 & 3 closed |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | Hard drive enabled | J1 | Pins 2 & 3 closed |
Hard drive disabled | J1 | Pins 1 & 2 closed | |
| » | I/O Channel Ready signal disabled | J5 | Open |
I/O Channel Ready signal enabled | J5 | Closed | |
| » | Uses VL Ready | J6 | Pins 2 & 3 closed |
Use CPU Ready | J6 | Pins 1 & 2 closed | |
| » | Floppy drive A:/B: order normal | J7 | Pins 2 & 3 closed |
Floppy drive A:/B: order changed | J7 | Pins 1 & 2 closed | |
| » | Floppy drive enabled | J8 | Pins 2 & 3 closed |
Floppy drive disabled | J8 | Pins 1 & 2 closed | |
| » | Floppy drive port address is 3F0-3F7h | J9 | Pins 2 & 3 closed |
Floppy drive port address is 370-377h | J9 | Pins 1 & 2 closed | |
| » | Hard drive interrupt is IRQ14 | J17 | Closed |
Hard drive interrupt is disabled | J17 | Open | |
| » | Serial Port 2 interrupt is IRQ3 | J18 | Closed |
Serial Port 2 interrupt is disabled | J18 | Open | |
| » | Serial Port 1 interrupt is IRQ4 | J19 | Closed |
Serial Port 1 interrupt is disabled | J19 | Open | |
| » | Floppy drive interrupt is IRQ6 | J21 | Closed |
Floppy drive interrupt is disabled | J21 | Open | |
| » | Game Port enabled | J23 | Closed |
Game Port disabled | J23 | Open | |
PARALLEL PORT CONFIGURATION | |||
LPT | Jumper J10 | Jumper J11 | |
LPT2 | Pins 1 & 2 closed | Pins 1 & 2 closed | |
LPT3 | Pins 1 & 2 closed | Pins 2 & 3 closed | |
Disabled | Pins 2 & 3 closed | Pins 1 & 2 closed | |
| » | LPT1 | Pins 2 & 3 closed | Pins 2 & 3 closed |
SERIAL PORT 1 CONFIGURATION | |||
COM | Jumper J12 | Jumper J13 | |
COM3 | Pins 1 & 2 closed | Pins 1 & 2 closed | |
Disabled | Pins 1 & 2 closed | Pins 2 & 3 closed | |
COM4 | Pins 2 & 3 closed | Pins 1 & 2 closed | |
| » | COM1 | Pins 2 & 3 closed | Pins 2 & 3 closed |
SERIAL PORT 2 CONFIGURATION | |||
COM | Jumper J14 | Jumper J15 | |
COM4 | Pins 1 & 2 closed | Pins 1 & 2 closed | |
COM3 | Pins 2 & 3 closed | Pins 1 & 2 closed | |
Disabled | Pins 1 & 2 closed | Pins 2 & 3 closed | |
| » | COM2 | Pins 2 & 3 closed | Pins 2 & 3 closed |
PARALLEL PORT INTERRUPT REQUEST | |||
IRQ | Jumper J20 | Jumper J22 | |
| » | Parallel port interrupt is IRQ7 | Open | Closed |
Parallel port interrupt is IRQ5 | Closed | Open | |
