DC-820B Hard Disk/Floppy Controller Settings and Configuration
TEKRAM TECHNOLOGY CO., LTD.
DC-820B
Data bus: | 32-bit EISA |
Size: | Three/quarter-length, full-height card |
Hard drive supported: | Up to seven SCSI devices |
Floppy drives supported: | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |

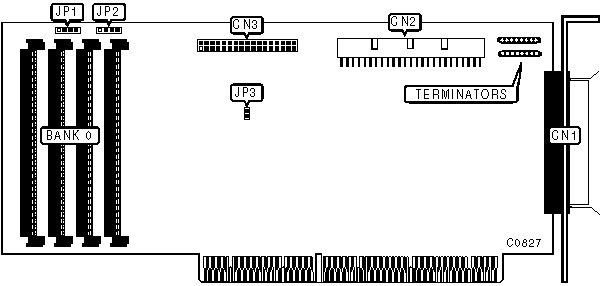

CONNECTIONS | |
Function | Location |
50-pin SCSI-2 connector - external | CN1 |
50-pin SCSI connector - internal | CN2 |
34-pin control cable connector - floppy drive | CN3 |
4-pin connector - drive active LED | JP1 |
4-pin connector - speaker | JP2 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | Floppy drive enabled | JP3 | closed |
Floppy drive disabled | JP3 | open | |
DRMA CONFIGURATION TABLE | |
Size | Bank 0 |
1MB | (4) 256K x 9 |
4MB | (4) 1MB x 9 |
16MB | (4) 4MB x 9 |
MISCELLANEOUS TECHNICAL NOTES |
Terminators must be removed only when both internal & external devices are connected to the host adapter. |
